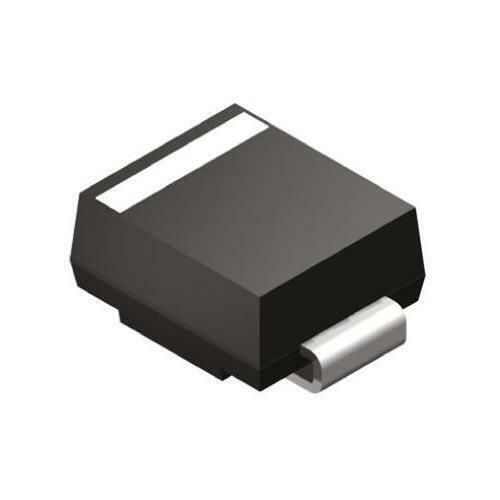

1380 x Panasonic Zener Diode DZ2W39000L, 39V 5% 1W SMT 2-Pin Mini2 F3 B - Panasonic

roll over the image to zoom in

£0.00
£192.99
RS 760-3047
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1380
    Unit Type:
    Unit
    Location:
    apr box i ALSO BOX S


    Panasonic

    Panasonic Zener Diode, 39V 5% 1 W SMT 2-Pin Mini2 F3 B


    • BMUK Part # : 760-3047
    • BrandPanasonic
    • Mfr. Part No.DZ2W39000L
    •
    •
    •
    • You will get 1380 Diodes on a Reel






    Product Details

    Zener Diodes 1W, DZ2W Series, Panasonic


    Zener Diodes, Panasonic


    Specifications



    		Nominal Zener Voltage39V

    		Diode ConfigurationSingle

    		Mounting TypeSurface Mount

    		Number of Elements per Chip1

    		Maximum Power Dissipation1 W

    		Package TypeMini2 F3 B

    		Zener TypeVoltage Regulator

    		Zener Voltage Tolerance5%

    		Pin Count2

    		Test Current5mA

    		Maximum Zener Impedance65Ω

    		Maximum Reverse Leakage Current10µA

    		Length2.6mm

    		Dimensions2.6 x 1.6 x 0.7mm

    		Height0.7mm

    		Typical Voltage Temperature Coefficient43mV/°C

    		Width1.6mm

    		Maximum Operating Temperature+150 °C
