1332 x Panasonic DSA2G01B0L PNP Transistor, 30mA, 20V, 3-Pin Mini3 G3 B - Panasonic
roll over the image to zoom in
£0.00
£197.99
RS 760-3066
Unit Quantity:
1332
Unit Type:
Unit
Location:
APR BOX K
Panasonic

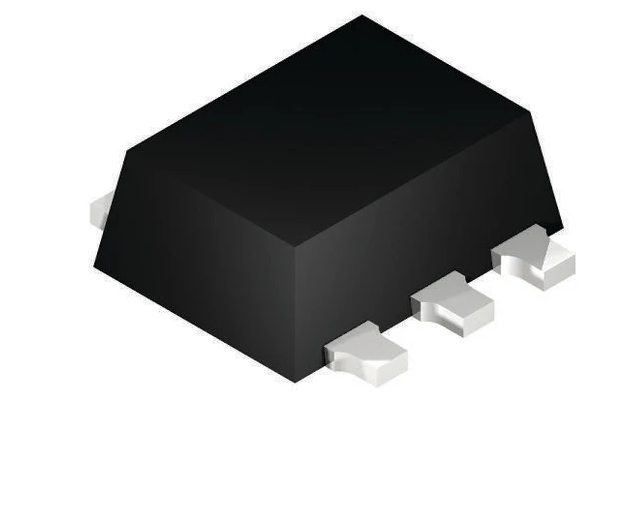

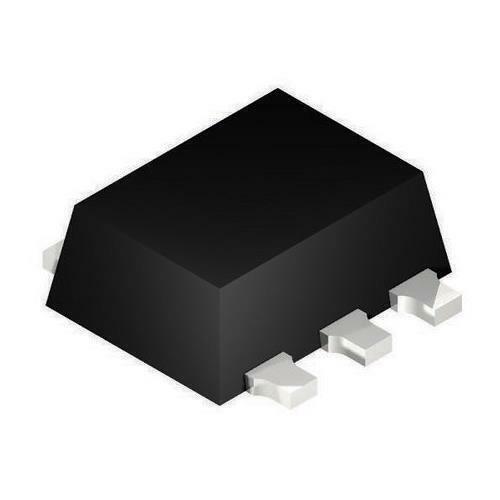

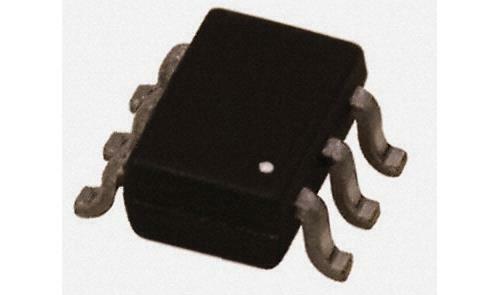

Panasonic DSA2G01B0L PNP Transistor, 30 mA, 20 V, 3-Pin Mini3 G3 B
- BMUK Part # : 760-3066
- BrandPanasonic
- Mfr. Part No.DSA2G01B0L
- You will get 1332 Transistors on 1 Reel
Product Details
Small Signal PNP Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | PNP | |
| Maximum DC Collector Current | 30 mA | |
| Maximum Collector Emitter Voltage | 20 V | |
| Package Type | Mini3 G3 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 200 mW | |
| Minimum DC Current Gain | 70 | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | -30 V | |
| Maximum Emitter Base Voltage | -5 V | |
| Maximum Operating Frequency | 300 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Length | 2.9mm | |
| Dimensions | 2.9 x 1.5 x 1.1mm | |
| Maximum Collector Emitter Saturation Voltage | -0.1 V | |
| Maximum Operating Temperature | +150 °C | |
| Width | 1.5mm | |
| Height | 1.1mm |
