1283 x Panasonic DB3S308F0L Dual SMT Switching Schottky Diode, 30V 100mA, 3-Pin - Panasonic

roll over the image to zoom in

£0.00
£72.99
RS 712-8669
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1283
    Unit Type:
    Unit
    Location:
    APR BOX R


    Panasonic

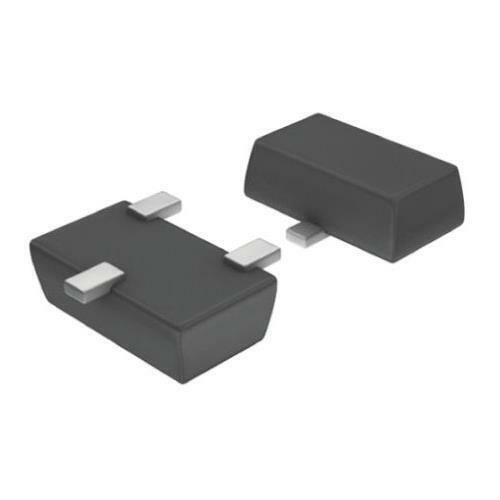

    Panasonic DB3S308F0L Dual SMT Switching Schottky Diode, Series, 30V 100mA, 3-Pin SSMini3 F3 B


    • BMUK Part # : 712-8669
    •  BrandPanasonic
    • Mfr. Part No.DB3S308F0L
    •
    •
    • You will get 1283 Diodes on a Reel






    Product Details

    Schottky Barrier Diodes, up to 1.5A, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications



    		Diode ConfigurationSeries

    		Maximum Continuous Forward Current100mA

    		Rectifier TypeSwitching

    		Number of Elements per Chip2

    		Peak Reverse Repetitive Voltage30V

    		Mounting TypeSurface Mount

    		Package TypeSSMini3 F3 B

    		Diode TechnologySchottky

    		Diode TypeSchottky

    		Pin Count3

    		Maximum Forward Voltage Drop420mV

    		Length1.6mm

    		Width0.85mm

    		Height0.7mm

    		Peak Reverse Recovery Time1.3ns

    		Maximum Operating Temperature+125 °C

    		Peak Non-Repetitive Forward Surge Current1A

    		Peak Reverse Current120µA

    		Dimensions1.6 x 0.85 x 0.7mm
