120 x Vishay IHLP5050FD-01 Series, Shielded Wire-wound SMD Inductor 560nH ±20% - Vishay
roll over the image to zoom in
£0.00
£186.99
RS 748-7417
Unit Quantity:
120
Unit Type:
Unit
Location:
APR BOX S
Vishay
Vishay IHLP5050FD-01 Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 560 nH ±20%
- BMUK Part # :-748-7417
- BrandVishay
- Mfr. Part No.IHLP5050FDERR56M01
- You will get a reel of 120 Inductors

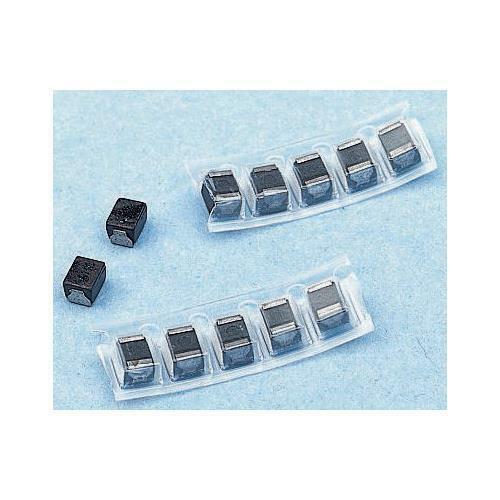

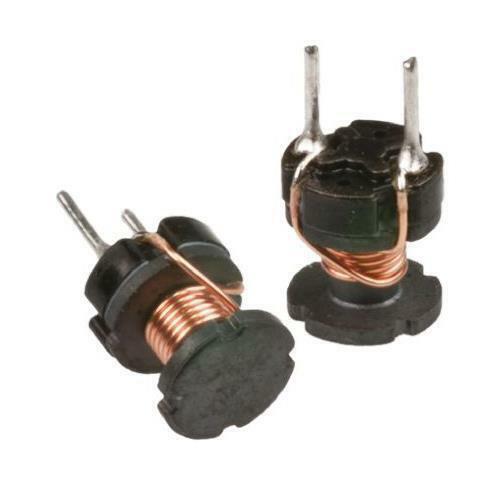

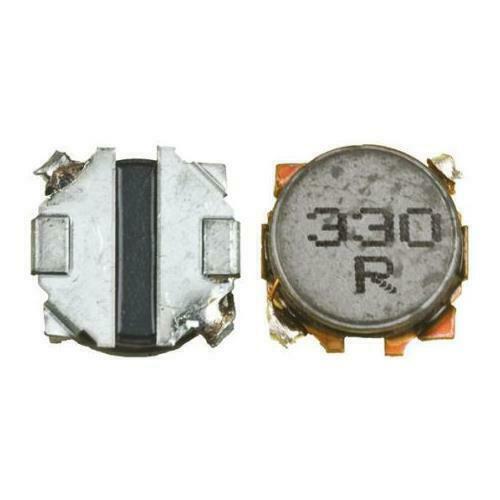

Image representative of range
Product Details
IHLP5050FD-01 Series Magnetically Shielded Wire Wound Chokes
Vishay IHLP-5050FD-01 series high current low profile shielded inductors. The IHLP-5050FD-01 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction.
Frequency range up to 5.0 MHz
Lowest DC Resistance / μH in this package size
Applications include: PDA/notebook/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)
Vishay Non Standard SMT Inductors (Chokes)
Specifications
| Inductance | 560 nH | |
| Maximum DC Current | 37A | |
| Package/Case | 5050 | |
| Length | 13.2mm | |
| Depth | 12.9mm | |
| Height | 6.5mm | |
| Dimensions | 13.2 x 12.9 x 6.5mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 1.4mΩ | |
| Series | IHLP5050FD-01 | |
| Core Material | Metal Composite | |
| Maximum Self Resonant Frequency | 5MHz | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Inductor Construction | Wire-Wound |
To view the datasheet please Click Here
Please visit our shop to see all our other items we have in stock,
Please call us if you have any questions,
Many thanks!
