1160 x Panasonic MTM761110LBF P-channel MOSFET, 4A, 12V MTM, 6-Pin - Panasonic
roll over the image to zoom in
£0.00
£327.99
RS 728-6848
Unit Quantity:
1160
Unit Type:
Unit
Location:
TS-LB 1i
Panasonic
Panasonic MTM761110LBF P-channel MOSFET, 4 A, 12 V MTM, 6-Pin WSMini6-F1-B
- BMUK Part # :-728-6848
- BrandPanasonic
- Mfr. Part No.MTM761110LBF
- You will get 1160 Transistors on 1 Reel

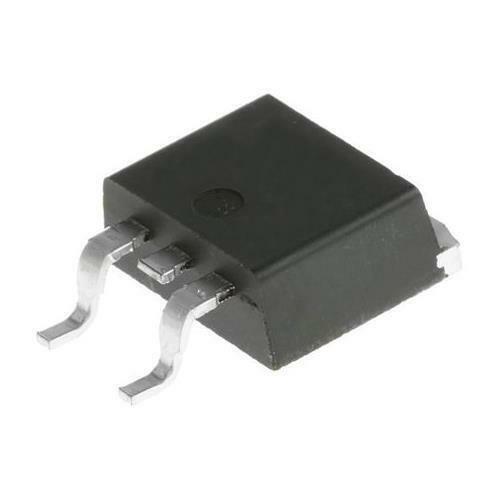

Image representative of range
Product Details
P-Channel MOSFET, Panasonic
MOSFET Transistors, Panasonic
Specifications
| Channel Type | P | |
| Maximum Continuous Drain Current | 4 A | |
| Maximum Drain Source Voltage | 12 V | |
| Maximum Drain Source Resistance | 54 mΩ | |
| Maximum Gate Threshold Voltage | 1V | |
| Maximum Gate Source Voltage | ±8 V | |
| Package Type | WSMini6-F1-B | |
| Mounting Type | Surface Mount | |
| Transistor Configuration | Single | |
| Pin Count | 6 | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation | 700 mW | |
| Maximum Operating Temperature | +150 °C | |
| Length | 2mm | |
| Number of Elements per Chip | 1 | |
| Dimensions | 2 x 1.7 x 0.6mm | |
| Transistor Material | Si | |
| Typical Turn-On Delay Time | 9 ns | |
| Typical Input Capacitance @ Vds | 1400 pF @ -10 V | |
| Typical Turn-Off Delay Time | 270 ns | |
| Width | 1.7mm | |
| Height | 0.6mm | |
| Series | MTM |
