1160 x Panasonic DB3X313J0L Dual SMT Schottky Signal Diode Common Anode 30V - Panasonic

roll over the image to zoom in

£0.00
£70.99
RS 713-2719
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1160
    Unit Type:
    Unit
    Location:
    APR BOX V


    Panasonic

    Panasonic DB3X313J0L Dual SMT Schottky Small Signal Diode, Common Anode, 30V 200mA, 1.5ns, 3-Pin Mini3 G3 B


    • BMUK Part # :-713-2719
    • BrandPanasonic
    • Mfr. Part No.DB3X313J0L
    •
    •
    • You will get 1160 Diodes on 1 Reel

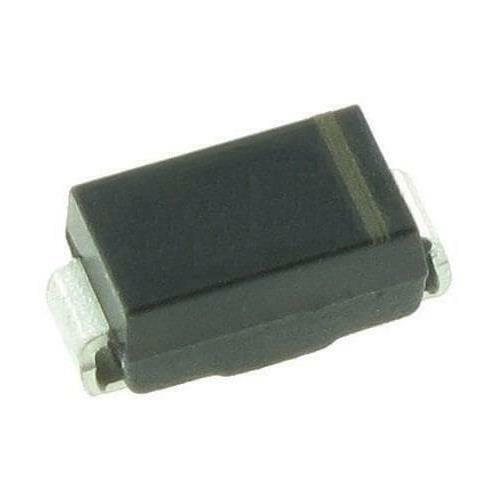

    Image representative of range



    Product Details

    Schottky Barrier Diodes, up to 1.5A, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications


    		Maximum Continuous Forward Current200mA

    		Diode ConfigurationCommon Anode

    		Rectifier TypeSmall Signal

    		Number of Elements per Chip2

    		Peak Reverse Repetitive Voltage30V

    		Mounting TypeSurface Mount

    		Package TypeMini3 G3 B

    		Diode TypeSchottky

    		Pin Count3

    		Maximum Forward Voltage Drop550mV

    		Length2.9mm

    		Width1.5mm

    		Height1.1mm

    		Peak Reverse Recovery Time1.5ns

    		Maximum Operating Temperature+125 °C

    		Dimensions2.9 x 1.5 x 1.1mm

    		Peak Reverse Current50µA

    		Peak Non-Repetitive Forward Surge Current1A


    To view the datasheet please Click Here
