1093 x Panasonic Dual Zener Diode, Isolated, 9.1V 5% 200mW SMT 4-Pin SMini4 F3 B - Panasonic
roll over the image to zoom in
£0.00
£132.99
RS 711-5847
Unit Quantity:
1093
Unit Type:
Unit
Location:
APR BOX C
Panasonic
Panasonic Dual Zener Diode, Isolated, 9.1V 5% 200 mW SMT 4-Pin SMini4 F3 B
- BrandPanasonic
- Mfr. Part No.DZ4J091K0R
- You will get 1093 Diodes on 1 Reel

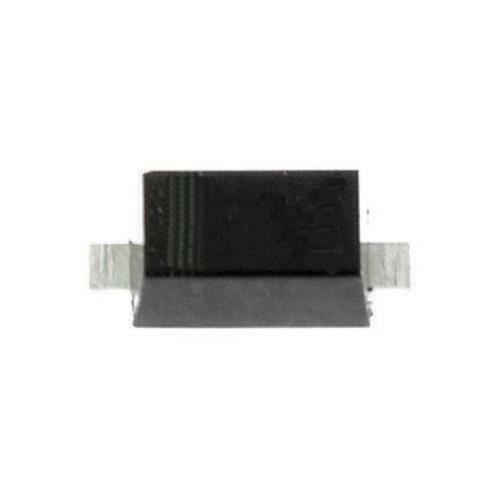

Image representative of range
Product Details
Zener Diodes 200mW, DZ4J Series, Double (Parallel), Panasonic
Zener Diodes, Panasonic
Specifications
| Nominal Zener Voltage | 9.1V | |
| Diode Configuration | Isolated | |
| Number of Elements per Chip | 2 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 200 mW | |
| Package Type | SMini4 F3 B | |
| Zener Type | General Purpose | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 4 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 60Ω | |
| Maximum Reverse Leakage Current | 100nA | |
| Length | 2mm | |
| Dimensions | 2 x 1.25 x 0.6mm | |
| Height | 0.6mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Voltage Temperature Coefficient | 5.8mV/°C | |
| Width | 1.25mm |
To view the datasheet please Click Here
