1080 x Panasonic DSC2001S0L NPN Transistor, 100mA, 50V, 3-Pin Mini3 G3 B - Panasonic
roll over the image to zoom in
£0.00
£71.99
RS 698-0404
Unit Quantity:
1080
Unit Type:
Unit
Location:
APR BOX Q
Panasonic

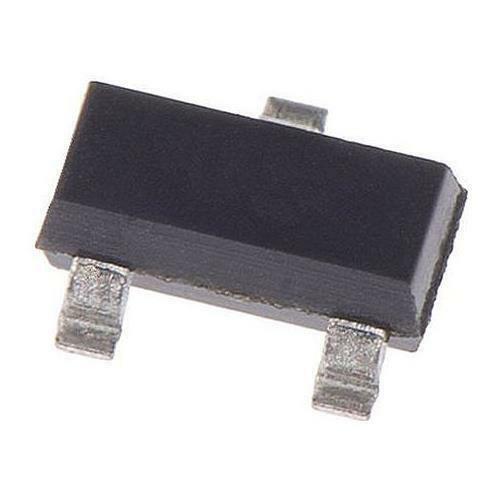

Panasonic DSC2001S0L NPN Transistor, 100 mA, 50 V, 3-Pin Mini3 G3 B
- BMUK Part # :-698-0404
- BrandPanasonic
- Mfr. Part No.DSC2001S0L
- You will get 1080 Transistors on 1 Reel
Product Details
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | Mini3 G3 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 200 mW | |
| Minimum DC Current Gain | 290 | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 60 V | |
| Maximum Emitter Base Voltage | 7 V | |
| Maximum Operating Frequency | 150 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Height | 1.1mm | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 2.9 x 1.5 x 1.1mm | |
| Width | 1.5mm | |
| Length | 2.9mm | |
| Maximum Collector Emitter Saturation Voltage | 0.3 V |
