1060 x Panasonic Zener Diode DZ2412000L, 12V 5% 2W SMT 2-Pin TMiniP2 F2 B - Panasonic
roll over the image to zoom in
£0.00
£221.99
RS 760-2824
Unit Quantity:
1060
Unit Type:
Unit
Location:
APR BOX C
Panasonic
Panasonic Zener Diode, 12V 5% 2 W SMT 2-Pin TMiniP2 F2 B
- BrandPanasonic
- Mfr. Part No.DZ2412000L
- You will get 1060 Diodes on 1 Reel

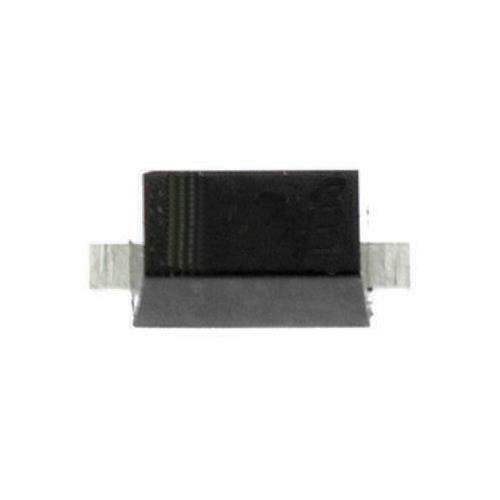

Image representative of range
Product Details
Zener Diodes 2W, DZ24 Series, Panasonic
Zener Diodes, Panasonic
Specifications
| Nominal Zener Voltage | 12V | |
| Diode Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 2 W | |
| Package Type | TMiniP2 F2 B | |
| Zener Type | Voltage Regulator | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 10mA | |
| Maximum Zener Impedance | 30Ω | |
| Maximum Reverse Leakage Current | 10µA | |
| Length | 3.8mm | |
| Dimensions | 3.8 x 2.4 x 0.82mm | |
| Height | 0.82mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Voltage Temperature Coefficient | 8.8mV/°C | |
| Width | 2.4mm |
