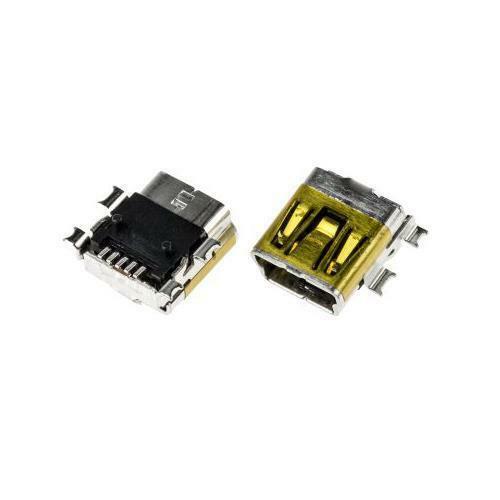

105 x Molex 67503-1020 Right Angle 2.0 Type B Mini USB Connector 30 V ac/dc - Molex

roll over the image to zoom in

£0.00
£95.99
RS 666-1099P
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    105
    Unit Type:
    Unit
    Location:
    TS-LB 1J


    Molex

    Molex On-The-Go Series Right Angle SMT Version 2.0 Type B Mini USB Connector Receptacle, 30 V ac/dc, 1A


    • BMUK Part # :-666-1099P
    • BrandMolex
    • Mfr. Part No.67503-1020
    •







    Product Details

    USB On-The-Go (OTG)

    These Molex range of USB OTG (On the Go) connectors are compatible with the On-The-Go supplement (Rev. 1.0) to the USB 2.0 specification. The needs of various portable and mobile equipment are met by these Molex OTG USB connectors by operating at speeds up to 480 Mbps coupled with a compact light-weight design.

    Features and Benefits:

    • They are about one-eighth the size of a standard USB-B connector
    • Excellent RFI/EMI performance
    • 5-pin design (one ID pin)
    • Through-hole and SMT versions available
    • Cable assemblies available
    • Voltage Rating of 30V
    • Current Rating of 1A
    • Expected Life Cycles are 5000


    Molex USB Connectors


    Specifications


    		GenderFemale

    		Mounting TypeSurface Mount

    		USB TypeB

    		Body OrientationRight Angle

    		Termination MethodSolder

    		Contact MaterialCopper Alloy

    		Voltage Rating30 V ac/dc

    		Current Rating1A

    		USB Version2.0

    		Minimum Operating Temperature0°C

    		Maximum Operating Temperature+50°C

    		SeriesOn-The-Go

    		Series Number67503

    		CAD Drawing3D CAD Model






    To view the datasheet please Click Here
