1040 x Panasonic DSC250100L NPN Bipolar Transistor, 500mA, 20V, 3-Pin - Panasonic
roll over the image to zoom in
£0.00
£149.99
RS 712-5910
Unit Quantity:
1040
Unit Type:
Unit
Location:
APR BOX B
Panasonic
Panasonic DSC250100L NPN Bipolar Transistor, 500 mA, 20 V, 3-Pin Mini3 G3 B B
- BMUK Part # :-712-5910
- BrandPanasonic
- Mfr. Part No.DSC250100L
- You will get 1040 Transistors on 1 Reel

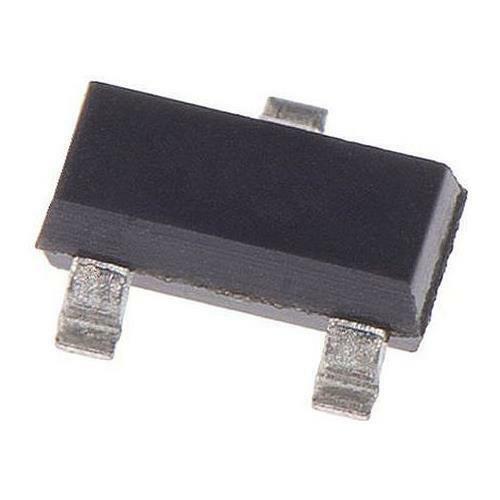

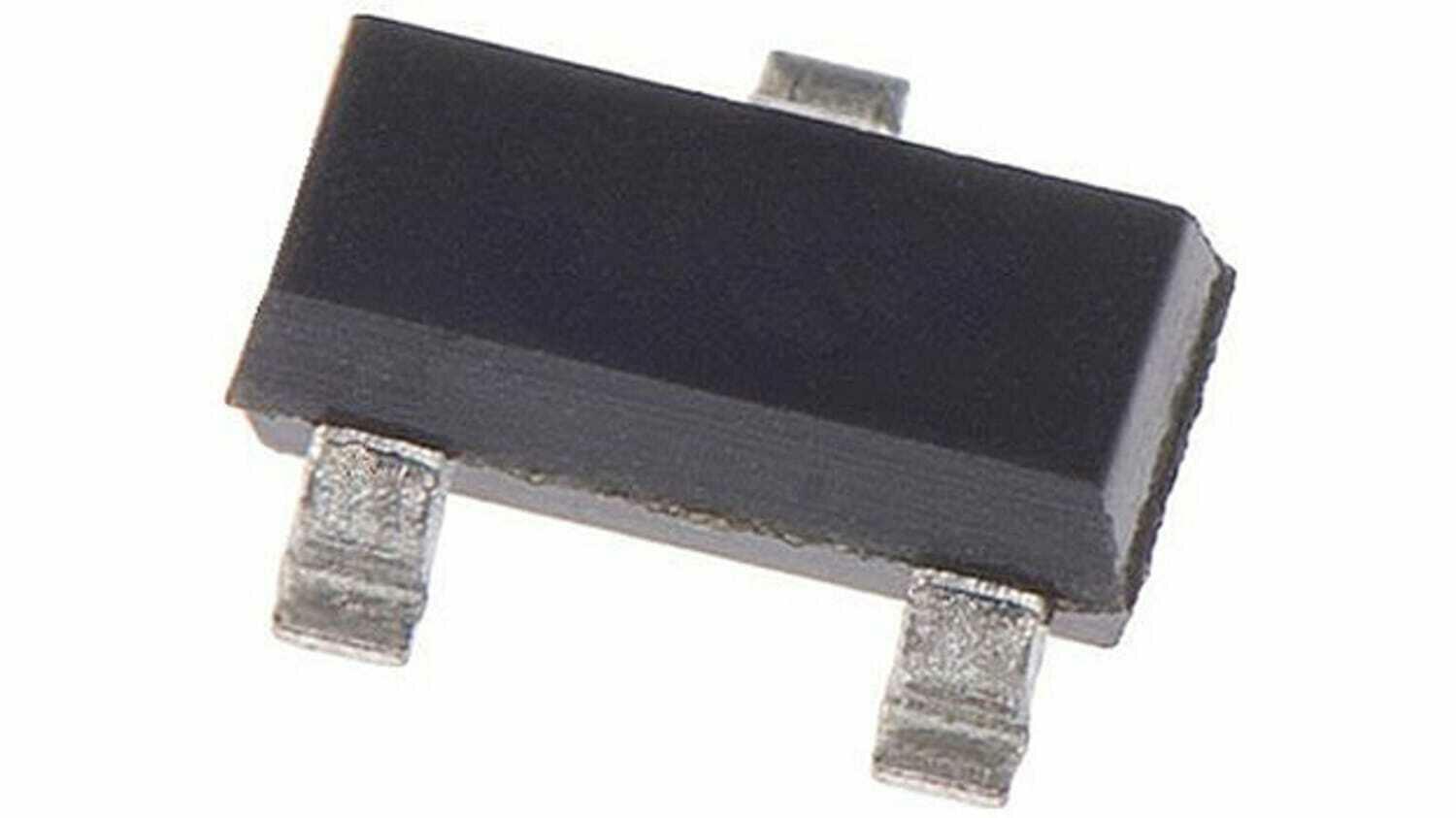

Image representative of range
Product Details
Small Signal NPN Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 20 V | |
| Package Type | Mini3 G3 B B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 200 mW | |
| Minimum DC Current Gain | 200 | |
| Maximum Collector Base Voltage | 25 V | |
| Maximum Emitter Base Voltage | 12 V | |
| Maximum Operating Frequency | 150 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Width | 1.5mm | |
| Maximum Base Emitter Saturation Voltage | 1.2 V | |
| Maximum Collector Emitter Saturation Voltage | 0.4 V | |
| Dimensions | 2.9 x 1.5 x 1.1mm | |
| Height | 1.1mm | |
| Maximum Operating Temperature | +150 °C | |
| Length | 2.9mm |
For a Specification PDF Please CLICK HERE
Thank you for looking, if you have any questions please ask or call us.
