1000 x Analog Devices ADM810TARTZ-REEL7, Processor Supervisor 3.08V - Analog Devices
roll over the image to zoom in
£0.00
£773.70
RS 709-1665
Unit Quantity:
1000
Unit Type:
Unit
Location:
APR BOX P
Analog Devices

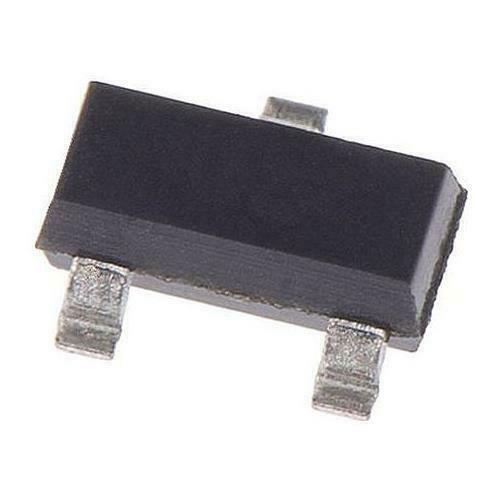

Analog Devices ADM810TARTZ-REEL7, Processor Supervisor 3.08V, SOT-23 3-Pin 2.5/3/3.3/5 V
- BMUK Part # :-709-1665
- BrandAnalog Devices
- Mfr. Part No.ADM810TARTZ-REEL7
- You will get 1000 ICs on 1 Reel
Product Details
Microprocessor Supervisory & Reset Circuits, Analog Devices
Microprocessor Supply Voltage Supervisory & Reset Circuits
Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.
Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit
Specifications
| Number of Supervisors | 1 | |
| Output Driver | Active High, Push-Pull | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 3 | |
| Maximum Reset Active Time | 840ms | |
| Dimensions | 2.9 x 1.3 x 1.02mm | |
| Height | 1.02mm | |
| Maximum Operating Temperature | +125 °C | |
| Length | 2.9mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Monitored Voltage | 3.15V | |
| Minimum Operating Supply Voltage | 1 V | |
| Width | 1.3mm | |
| Minimum Monitored Voltage | 3.08V |
To view the datasheet please Click Here
TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length
Product Details
DR-25 Heat shrink Tubing (Shrink Ratio 2:1)
Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.
Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system
Standards
VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.
High Temperature
Add product to Compare
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Sleeve Diameter | 9.5mm | |
| Shrunk Diameter | 4.8mm | |
| Colour | Black | |
| Sleeve Type | Heat Shrink | |
| Shrink Ratio | 2:1 | |
| Sleeve Length | 10m | |
| Material | Elastomer | |
| Minimum Operating Temperature | -75°C | |
| Maximum Operating Temperature | +150°C | |
| Dielectric Strength | 8kV/mm |
Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC
Product Details
MCP7940M I²C Real-Time Clock/Calendars
The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.
The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.
Features
2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHzOn-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V
Real Time Clock Peripherals - Microchip
Add product to Compare
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Functions | Calendar, NV SRAM | |
| Date Format | DW:DM:M:Y | |
| Time Format | HH:MM:SS | |
| User RAM | 64B | |
| Bus Type | Serial-I2C | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Dimensions | 4.9 x 3.9 x 1.25mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Height | 1.25mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Supply Voltage | 1.8 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C |
