100 x STMicroelectronics LM2903D Dual Comparator, CMOS/TTL O/P, 1.3μs 2-36V 8-Pi - STMicroelectronics

roll over the image to zoom in

£0.00
£173.99
RS 714-0751
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    100
    Unit Type:
    Unit
    Location:
    TS 58G


    STMicroelectronics

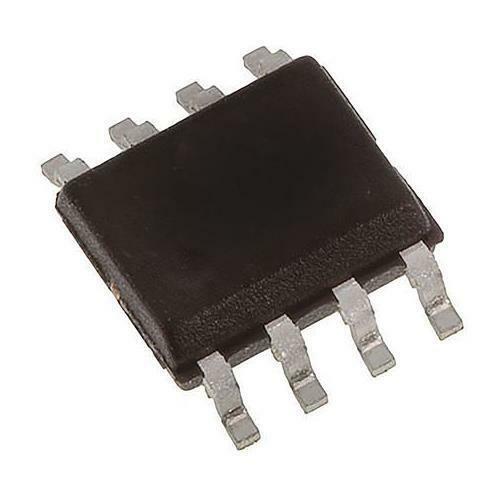

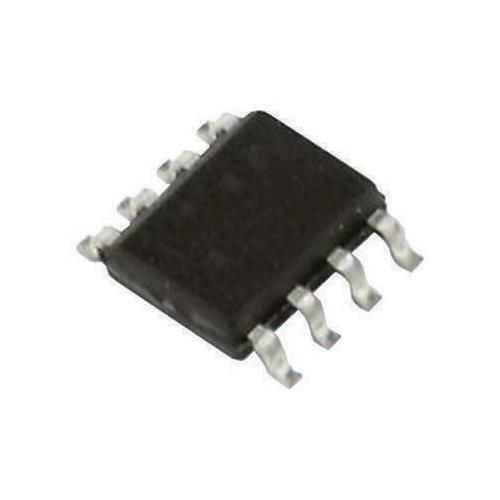

    STMicroelectronics LM2903D Dual Comparator, CMOS/TTL O/P, 1.3μs 2 → 36 V 8-Pin SOIC


    • BrandSTMicroelectronics
    • Mfr. Part No.LM2903D
    •
    •
    • You will get a pack of 100 Comparators







    Product Details

    Comparators, STMicroelectronics

    High-Speed Comparators, with fast response times
    Low-Power Comparators with operating currents as low as 210nA
    High-Temperature qualified devices
    Automotive-grade Comparators are AEC-Q100 and AEC-Q101 qualified


    Comparators, STMicroelectronics


    Specifications


    		Comparator TypeGeneral Purpose

    		Mounting TypeSurface Mount

    		Package TypeSOIC

    		Power Supply TypeDual, Single

    		Output TypeCMOS, DL, ECL, MOS, TTL

    		Number of Channels per Chip2

    		Typical Response Time1.3µs

    		Pin Count8

    		Typical Single Supply Voltage2 → 36 V

    		Dimensions5 x 4 x 1.25mm

    		Length5mm

    		Width4mm

    		Height1.25mm

    		Typical Voltage Gain200 V/mV

    		Typical Dual Supply Voltage±1 → ±18V

    		Maximum Operating Temperature+125 °C

    		Minimum Operating Temperature-40 °C


    To view the datasheet please Click Here
