100 x Panasonic, DMG964020R, Dual NPN+PNP Digital Transistor, 100mA 50V 22kΩ - Panasonic
roll over the image to zoom in
£0.00
£31.99
RS 711-5578
Unit Quantity:
100
Unit Type:
Unit
Location:
APR BOX H
Panasonic
Panasonic, DMG964020R, Dual NPN+PNP Digital Transistor, 100mA 50V 22 kΩ, Ratio Of 1, 6-Pin SSMini6
- BMUK Part # :-711-5578
- BrandPanasonic
- Mfr. Part No.DMG964020R
- You will get a pack of 100 Transistors

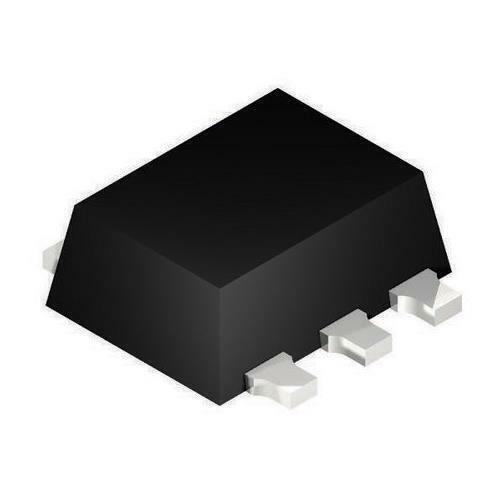

Image representative of range
Product Details
Dual Resistor Dual Digital NPN+PNP Transistors, Panasonic
Digital Transistors, Panasonic
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
Specifications
| Transistor Type | NPN, PNP | |
| Number of Elements per Chip | 2 | |
| Maximum Continuous Collector Current | -100 (PNP) mA, 100 (NPN) mA | |
| Maximum Collector Emitter Voltage | -50 (PNP) V, 50 (NPN) V | |
| Typical Input Resistor | 22 kΩ | |
| Mounting Type | Surface Mount | |
| Package Type | SSMini6 F3 B | |
| Pin Count | 6 | |
| Minimum DC Current Gain | 60 (NPN), 60 (PNP) | |
| Maximum Power Dissipation | 125 mW | |
| Maximum Collector Emitter Saturation Voltage | -0.25 (PNP) V, 0.25 (NPN) V | |
| Typical Resistor Ratio | 1 | |
| Width | 1.2mm | |
| Height | 0.5mm | |
| Maximum Operating Temperature | +150 °C | |
| Length | 1.6mm | |
| Dimensions | 1.6 x 1.2 x 0.5mm |
To view the datasheet please Click Here
