100 x ON Semiconductor MBRS130L SMT Schottky Diode, 30V 2A, 2-Pin DO-214AA - ON Semiconductor

roll over the image to zoom in

£0.00
£29.99
RS 806-4093
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    100
    Unit Type:
    Unit
    Location:
    ES-14F


    ON Semiconductor

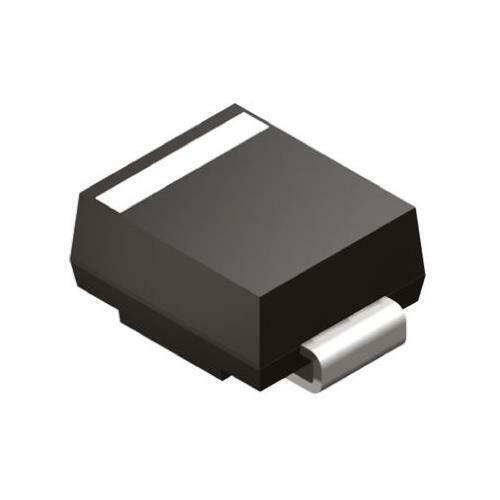

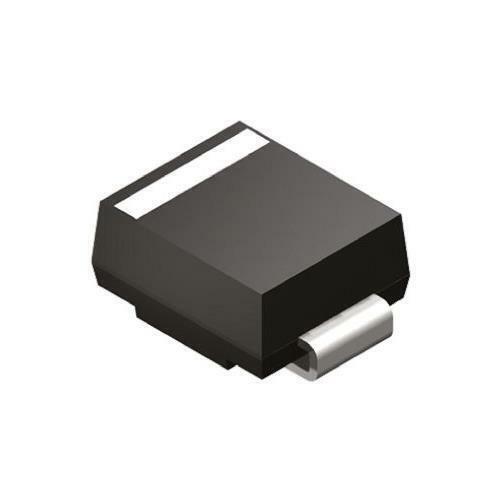

    ON Semi MBRS130L SMT Schottky Diode, 30V 2A, 2-Pin DO-214AA

    • BMUK Part # :-806-4093
    • BrandON Semiconductor
    • Mfr Part No.MBRS130L
    •  ON Semiconductor
    •
    • You will get a pack of 100 Diodes
    ON Semi MBRS130L SMT Schottky Diode, 30V 2A, 2-Pin DO-214AA
    Product Details

    Schottky Barrier Rectifier Diodes, Single, Fairchild Semiconductor







    Diodes and Rectifiers, Fairchild Semiconductor

    Specifications
    Diode Configuration
    Single
    Maximum Operating Temperature
    +125 °C
    Number of Elements per Chip
    1
    Length
    4.75mm
    Brand
    ON Semiconductor
    Package Type
    DO-214AA (SMB)
    Maximum Continuous Forward Current
    2A
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -65 °C
    Width
    3.95mm
    Height
    2.45mm
    Maximum Forward Voltage Drop
    395mV
    Pin Count
    2
    Dimensions
    4.75 x 3.95 x 2.45mm
    Peak Non-Repetitive Forward Surge Current
    40A
    Peak Reverse Current
    10mA
    Diode Type
    Schottky
    Peak Reverse Repetitive Voltage
    30V
    Diode Technology
    Schottky
