10 x Texas Instruments CD4510BE 4-stage BCD Counter Up/Down Counter 3-18V 16-Pin - Texas Instruments
Texas Instruments

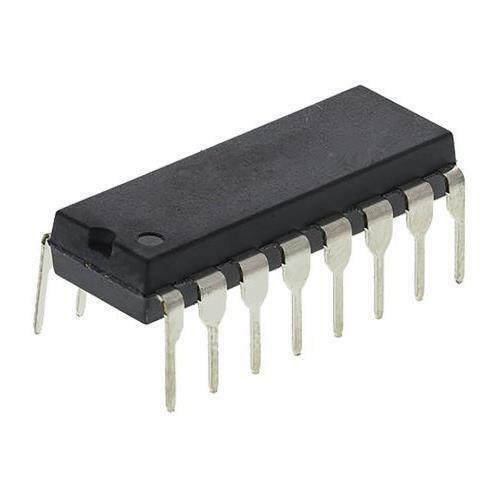

Texas Instruments CD4510BE 4-stage BCD Counter, Up/Down Counter, 3 → 18 V, 16-Pin PDIP
4000 Series Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters & Shift Registers from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Package Type | PDIP | |
Logic Function | Counter | |
Number of Stages | 4 | |
Logic Family | 4000 | |
Mounting Type | Through Hole | |
Counter Type | BCD | |
Operation Mode | Down Counter, Up Counter | |
Number of Elements | 1 | |
Pin Count | 16 | |
Minimum Operating Supply Voltage | 3 V | |
Maximum Operating Supply Voltage | 18 V | |
Dimensions | 19.3 x 6.35 x 4.57mm | |
Length | 19.3mm | |
Width | 6.35mm | |
Height | 4.57mm | |
Minimum Operating Temperature | -55 °C | |
Maximum Operating Temperature | +125 °C | |
Triggering Type | Positive Edge | |
Direction Type | Bi-Directional |
Nichicon Aluminium Polymer Capacitor 330μF 2.5 V dc 6.3mm Through Hole LS Series Lifetime 5000h
LS Series Solid Electrolytic Radial
Solid Radial 105°C
Capacitance | 330 µF | |
Technology | Polymer | |
Voltage | 2.5 V dc | |
Dimensions | 6.3 (Dia.) x 9mm | |
Height | 9mm | |
Diameter | 6.3mm | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +105°C | |
Lead Pitch | 2.5mm | |
Construction | Radial | |
Series | LS | |
Terminal Type | Through Hole | |
Lifetime | 5000h | |
Leakage Current | 500 μA | |
Board Level Components | Y | |
Lead Diameter | 0.6mm | |
Ripple Current | 4.8A | |
Tolerance Minus | -20% | |
Tolerance | ±20% | |
Tolerance Plus | +20% | |
Equivalent Series Resistance | 8mΩ |
TE Connectivity 0.5A Surface Mount Resettable Fuse, 24 V dc
PolySwitch Mini SMDC series
TE PolySwitch miniSMD series surface-mount devices are an effective circuit protection method for computer, consumer, multimedia, portable and automotive electronics applications.
Halogen free
Current ratings from 0.05 to 3A
Voltage ratings from 6V computer and electronic applications to 60V telecom applications
Small footprint
Fast time-to-trip
Low resistance
RoHS compliant
Surface Mount Technology (fuses)
Surface Mount Technology
Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.
Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required
Main applications
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
Trip Current | 1A | |
Voltage Rating | 24 V dc | |
Time to Trip | 0.15s | |
Hold Current | 0.5 A | |
Maximum Current | 100 A | |
Length | 4.73mm | |
Height | 0.62mm | |
Width | 3.41mm | |
Minimum Resistance | 0.15Ω | |
Maximum Resistance | 1Ω | |
Power Dissipation | 0.8W | |
Maximum Operating Temperature | +85°C | |
Dimensions | 4.73 x 3.41 x 0.62mm | |
Operating Temperature Range | Maximum of +85 °C |
