10 x Panasonic Zener Diode DZ2J03300L, 3.3V 5% 200mW SMT 2-Pin SMini2 F5 B - Panasonic
roll over the image to zoom in
£0.00
£4.99
RS 703-3565
Type:
Zener Diode
Unit Quantity:
10
Unit Type:
Unit
Location:
APR BOX R
Panasonic
Panasonic Zener Diode, 3.3V 5% 200 mW SMT 2-Pin SMini2 F5 B
- BMUK Part # : 703-3565
- BrandPanasonic
- Mfr. Part No.DZ2J03300L
- You will get 10 Diodes on SM Tape

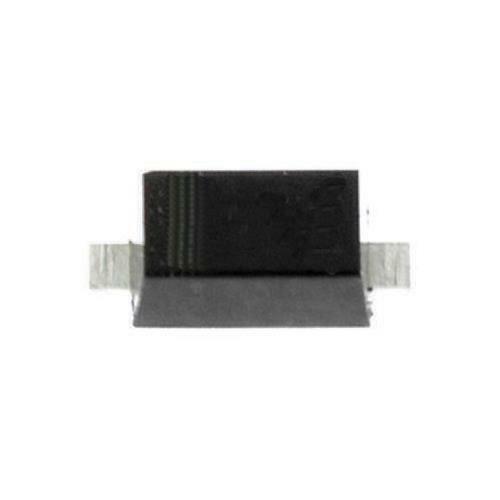

Image representative of range
Product Details
Zener Diodes 200mW, DZ2J Series, Panasonic
For constant voltage / waveform clipper and surge absorption circuit
Low noise type
Surface Mount case: SMini2-F5-B
Zener Diodes, Panasonic
Specifications
| Diode Configuration | Single | |
| Nominal Zener Voltage | 3.3V | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 200 mW | |
| Package Type | SMini2 F5 B | |
| Zener Type | General Purpose | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Maximum Zener Impedance | 130Ω | |
| Maximum Reverse Leakage Current | 20µA | |
| Length | 1.7mm | |
| Dimensions | 1.7 x 1.25 x 0.7mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Voltage Temperature Coefficient | -2.1mV/°C | |
| Width | 1.25mm | |
| Height | 0.7mm |
