10 x Osram Opto CHIPLED 0805 LYR971HL1020R18 2.6V Yellow LED 2012 (0805) SMD - OSRAM Opto Semiconductors
roll over the image to zoom in
£0.00
£5.99
RS 497-5150
Unit Quantity:
10
Unit Type:
Unit
LED Colour:
Yellow
Location:
TS BRA 12C
OSRAM Opto Semiconductors

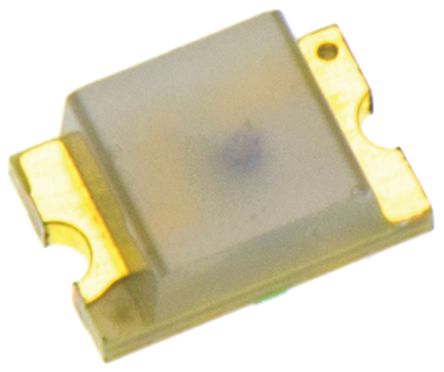

2.6 V Yellow LED 2012 (0805) SMD, Osram Opto CHIPLED 0805 LYR971HL1020R18
- BMUK Stock No.497-5150
- Brand
- Mfr Part No.LYR971HL1020R18
- You will get TEN LED's
Product Details
OSRAM CHIPLED 0805 Series LEDs
The CHIPLED 0805 family, from OSRAM Opto Semiconductors, are a range of compact SMT LEDs in the standard 0805 footprint. They are in a rectangular package with a flat top. The CHIPLED 0805 is a compact LED, making them ideal for applications where space is limited. Available in a range of colours, the CHIPLED 0805 LEDs are suitable for optical indicators, display backlighting, floor marker lighting or toys.
Features of the CHIPLED 0805 LEDs:
Industry standard 0805 package
2.0 x 1.25 x 0.8 mm package size
Colourless diffused resin
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
Specifications
Lens Colour
Clear
Luminous Intensity
18 mcd
Dimensions
2.1 x 1.35 x 0.9mm
Brand
OSRAM Opto Semiconductors
Number of LEDs
1
Package Type
2012 (0805)
LED Colours
Yellow
Forward Voltage
2.6 V
Number of Pins
2
Viewing Angle
160 °
Luminous Flux
28 mlm
Series
CHIPLED 0805
Mounting Type
Surface Mount
Lens Shape
Rectangle
Dominant Wavelength
590 nm
