10 x ON Semiconductor 1N6284AG, Uni-Directional TVS Diode, 1500W, 2-Pin Case 41A - Littlefuse
roll over the image to zoom in
£0.00
£8.99
RS 774-3381
Unit Quantity:
10
Unit Type:
Unit
Location:
TS-LB 5L
Littlefuse
ON Semiconductor 1N6284AG, Uni-Directional TVS Diode, 1500W, 2-Pin Case 41A
- BMUK Part # :-774-3381
- BrandLittlefuse
- Mfr. Part No.1N6284AG
- You will get a pack of 10 Diodes

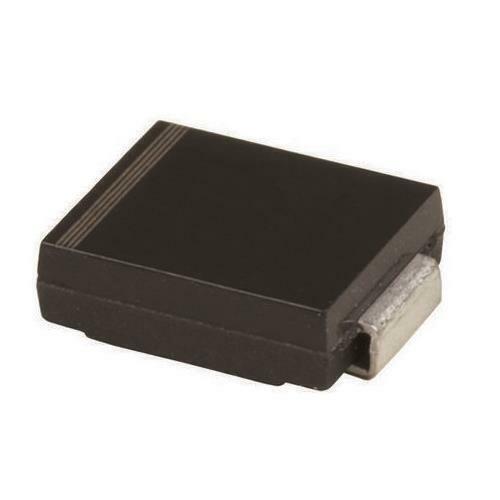

Image representative of range
Product Details
1500W Mosorb™ Zener Transient Voltage Suppressor (Unidirectional)
Mosorb devices are designed to protect voltage sensitive components from high voltage, high-energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time.
Peak Power of 1500 Watts @ 1 ms
ESD Rating of Class 3 (>16 kV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5 μA Above 10V
UL 497B for Isolated Loop Circuit Protection
Response Time is Typically < 1ns
Transient Voltage Suppressors, ON Semiconductor
Specifications
| Direction Type | Uni-Directional | |
| Diode Configuration | Single | |
| Maximum Clamping Voltage | 49.9V | |
| Minimum Breakdown Voltage | 34.2V | |
| Mounting Type | Through Hole | |
| Package Type | Case 41A | |
| Maximum Reverse Stand-off Voltage | 30.8V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 1500W | |
| Maximum Peak Pulse Current | 30A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +175 °C | |
| Test Current | 1mA | |
| Maximum Reverse Leakage Current | 5µA | |
| Diameter | 5.3mm | |
| Dimensions | 5.3 (Dia.) x 9.5mm | |
| Length | 9.5mm |
To view the datasheet please Click Here
