10 x Microchip MCP6482-E/SN Low Power Op Amp, 4MHz Rail-Rail, 2.2-5.5V, 8-Pin - Microchip
roll over the image to zoom in
£0.00
£15.99
RS 803-2159
Unit Quantity:
10
Unit Type:
Unit
Location:
BRA 12F
Microchip

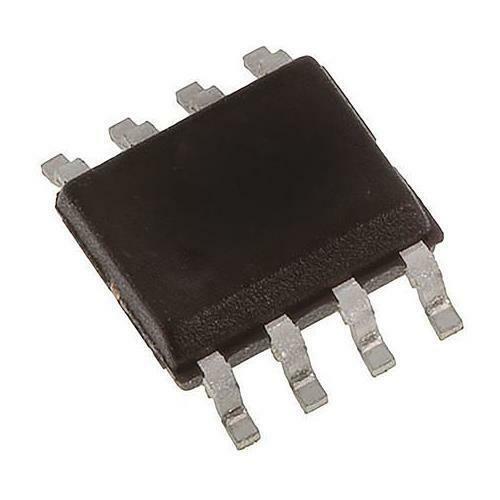

Microchip MCP6482-E/SN Low Power Op Amp, 4MHz Rail-Rail, 2.2 → 5.5 V, 8-Pin SOIC
Product Details
MCP6481/6482/6484 Operational Amplifiers
Operational Amplifiers, Microchip
Specifications
| Amplifier Type | Low Power | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Power Supply Type | Dual | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 2.2 → 5.5 V | |
| Typical Gain Bandwidth Product | 4MHz | |
| Output Type | Rail to Rail | |
| Typical Slew Rate | 2.7V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Typical Voltage Gain | 115 dB | |
| Width | 3.9mm | |
| Length | 4.9mm | |
| Dimensions | 4.9 x 3.9 x 1.25mm | |
| Typical Input Voltage Noise Density | 23nV/√Hz | |
| Height | 1.25mm |
To view the datasheet please Click Here
Please visit our shop to see all our other items we have in stock,
Please call us if you have any questions,
Many thanks!
