10 x Infineon BFS17PE6327 NPN RF Bipolar Transistor, 0.08A, 15V, 3-Pin - Infineon
roll over the image to zoom in
£0.00
£8.99
RS 445-2247
Unit Quantity:
10
Unit Type:
Unit
Location:
TS 49L
Infineon

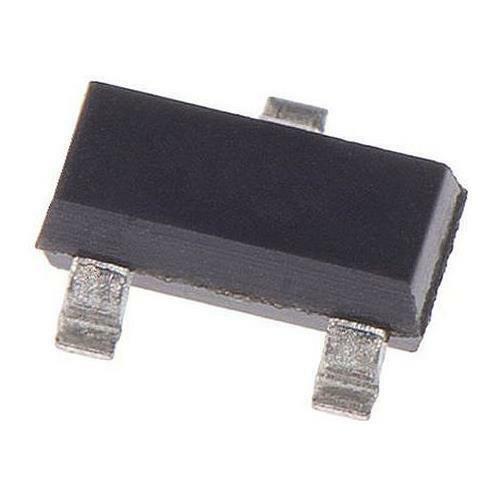

Infineon BFS17PE6327 NPN RF Bipolar Transistor, 0.08 A, 15 V, 3-Pin SOT-23
- BMUK Part # :-445-2247
- BrandInfineon
- Mfr. Part No.BFS17P
- You will get a pack of 10 Transistors
Product Details
RF Bipolar Transistors, Infineon
Bipolar Transistors, Infineon
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 0.08 A | |
| Maximum Collector Emitter Voltage | 15 V | |
| Package Type | SOT-23 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 0.28 W | |
| Minimum DC Current Gain | 20 | |
| Maximum Collector Base Voltage | 25 V | |
| Maximum Emitter Base Voltage | 2.5 V | |
| Maximum Operating Frequency | 2.5 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Width | 1.3mm | |
| Dimensions | 1 x 2.9 x 1.3mm | |
| Length | 2.9mm | |
| Height | 1mm | |
| Maximum Operating Temperature | +150 °C | |
| Maximum Collector Emitter Saturation Voltage | 0.4 V |
