10 x Fairchild FDMA520PZ P-channel MOSFET Transistor -7.3A -20V 6-Pin MicroFET - Fairchild Semiconductor

roll over the image to zoom in

£0.00
£6.00
RS 739-6254
Earn0
reward points

In stock: 279

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    10
    Unit Type:
    Unit
    Location:
    APR BOX G


    Fairchild Semiconductor


    Fairchild FDMA520PZ P-channel MOSFET Transistor, -7.3 A, -20 V, 6-Pin MicroFET

    You will get 10 Transistors on SM Tape, Multi Buys will come on one legnth of tape

  • BrandFairchild Semiconductor
  • Mfr. Part No.FDMA520PZ
  •
    • Fairchild Semiconductor
    Fairchild FDMA520PZ P-channel MOSFET Transistor, -7.3 A, -20 V, 6-Pin MicroFET

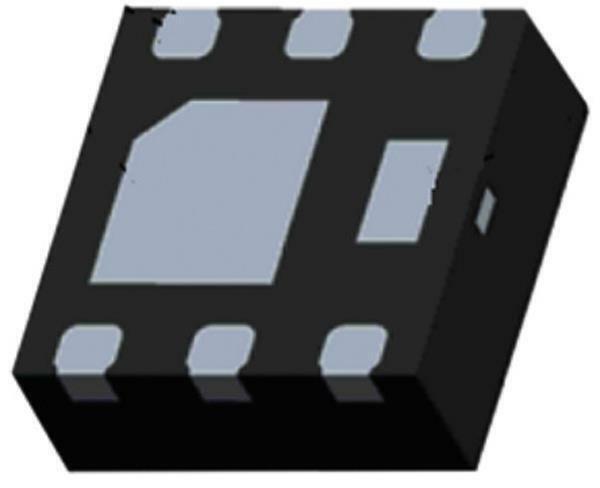

    Image representative of range
    Product Details

    PowerTrench® P-Channel MOSFET, Fairchild Semiconductor

    PowerTrench® MOSFETs are optimised power switches that offer increase of system efficiency and power density. They combine small gate charge(Qg), small reverse recovery charge(Qrr) and soft reverse recovery body diode, which contributes to fast switching of synchronous rectification in AC/DC power supplies.
    The latest PowerTrench® MOSFETs, employ shielded-gate structure that provides charge balance. By utilizing this advanced technology, the FOM (Figure of Merit) of these devices is significant lower than that of previous generation.
    Soft body diode performance of the PowerTrench® MOSFETs is able to eliminate snubber circuit or replace a higher voltage rating MOSFET.

    MOSFET Transistors, Fairchild Semiconductor

    Fairchild offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V). The advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.
    Fairchild MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.


    Specifications

    CategoryPower MOSFET
    Channel ModeEnhancement
    Channel TypeP
    ConfigurationQuad Drain, Single
    Dimensions2 x 2 x 0.75mm
    Height0.75mm
    Length2mm
    Maximum Continuous Drain Current       -7.3 A
    Maximum Drain Source Resistance55 mΩ
    Maximum Drain Source Voltage-20 V
    Maximum Gate Source Voltage±12 V
    Maximum Operating Temperature+150 °C
    Maximum Power Dissipation2.4 W
    Minimum Operating Temperature-55 °C
    Mounting TypeSurface Mount
    Number of Elements per Chip1
    Package TypeMicroFET
    Pin Count6
    Typical Gate Charge @ Vgs14 nC V @ -4.5
    Typical Input Capacitance @ Vds1235 pF V @ -10
    Typical Turn-Off Delay Time83 ns
    Typical Turn-On Delay Time10 ns
    Width2mm

    Specification PDF Please CLICK HERE
