1 x Zilog Z8F0422SJ020SG, 8bit Z8 Microcontroller, 20MHz, 4 kB Flash, 28-Pin - Zilog
roll over the image to zoom in
£0.00
£5.99
RS 660-0791
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 39H
Zilog

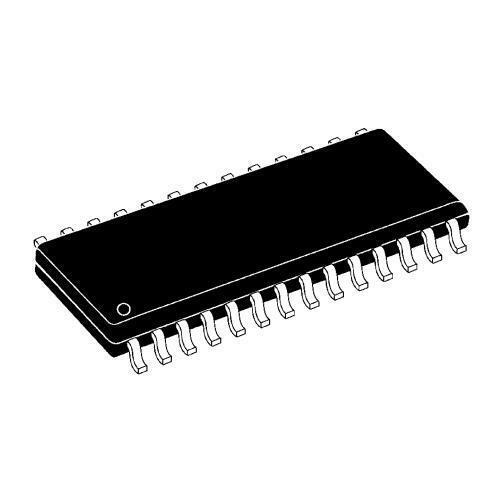

Zilog Z8F0422SJ020SG, 8bit Z8 Microcontroller, 20MHz, 4 kB Flash, 28-Pin SOIC
- BMUK Part # :-660-0791
- BrandZilog
- Mfr. Part No.Z8F0422SJ020SG
-
- You will get 1 Microcontroller
Product Details
Z8 Family Microcontrollers, Zilog
Z8 Microcontrollers, Zilog
Specifications
| Family Name | Z8 Encore! XP | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Device Core | Z8 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 4 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 1 kB | |
| Number of PWM Units | 1 | |
| ADC Channels | 5 | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 2.7 → 3.6 V | |
| Number of I2C Channels | 1 | |
| PWM Channels | 2 | |
| PWM Resolution | 16bit | |
| Program Memory Type | Flash | |
| Width | 7.6mm | |
| ADCs | 5 x 10 bit | |
| Number of ADC Units | 1 | |
| Height | 2.44mm | |
| Maximum Operating Temperature | +70 °C | |
| Number of UART Channels | 1 | |
| Pulse Width Modulation | 2 x 16 bit | |
| Length | 18mm | |
| Dimensions | 18 x 7.6 x 2.44mm | |
| Timers | 2 x 16 bit | |
| Timer Resolution | 16bit | |
| ADC Resolution | 10bit | |
| Number of Timers | 2 | |
| Minimum Operating Temperature | 0 °C | |
| Instruction Set Architecture | CISC |
