1 x Wurth Wire-wound Inductor 744776247, Ferrite Core, 470 uH ±10%, 440mA Idc - Wurth Elektronik
roll over the image to zoom in
£0.00
£3.49
RS 522-7109P
Unit Quantity:
1
Unit Type:
Unit
Location:
APR SHELF BOX 6
Wurth Elektronik
Wurth WE-PD2 Series Wire-wound SMD Inductor with a Ferrite Core, 470 μH ±10% Unshielded 440mA Idc
- BMUK Part # :-522-7109P
- BrandWurth Elektronik
- Mfr. Part No.744776247
- You will get 1 Inductor

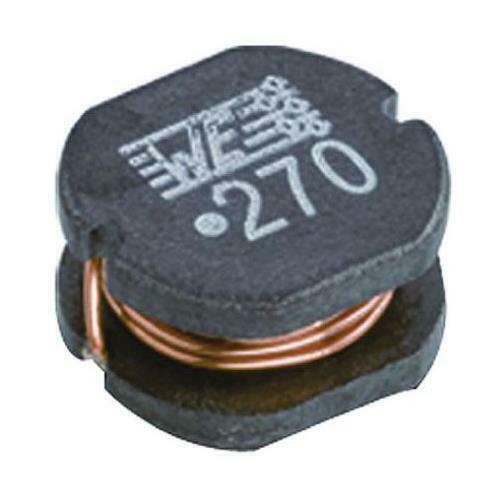

Image representative of range
Product Details
WE-PD2 Series Wire Wound Chokes
WE-PD2 Series Open frame SMD Power Inductors with a current capability of up to 14 Amps. Recommended for reflow soldering, the WE-PD2 Series inductors are suitable for use in the following applications: Switching regulators with low operating voltage (computer, laptop, mobile phones and pagers); Integrated DC/DC-converter; Perfectly suitable for switching regulators with extremely high efficiency
| Dimensions (mm) | ||||
| Case Size | A | B | C | D |
| 4532 | 4.0 | 4.5 | 3.2 | 1.0 |
| 5820 | 5.0 | 5.8 | 2.0 | 2.0 |
| 5848 | 5.0 | 5.8 | 4.5 | 2.0 |
| 7850 | 7.0 | 7.8 | 5.0 | 3.0 |
| 1054 | 9.0 | 10.0 | 5.4 | 3.5 |
Wurth Non Standard SMT Inductors (Chokes)
Specifications
| Inductance | 470 μH | |
| Maximum DC Current | 440mA | |
| Length | 10mm | |
| Depth | 9mm | |
| Height | 5.4mm | |
| Dimensions | 10 x 9 x 5.4mm | |
| Shielded | No | |
| Tolerance | ±10% | |
| Maximum DC Resistance | 1.48Ω | |
| Series | WE-PD2 | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 3MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C |
For a Specification PDF Please CLICK HERE
