1 x Vishay VS-85HFLR60S05, Thread Mount Switching Diode, Stud Anode, 600V 85A - Vishay

roll over the image to zoom in

£0.00
£22.99
RS 468-9815
Earn0
reward points

In stock: 3

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 26O


    Vishay

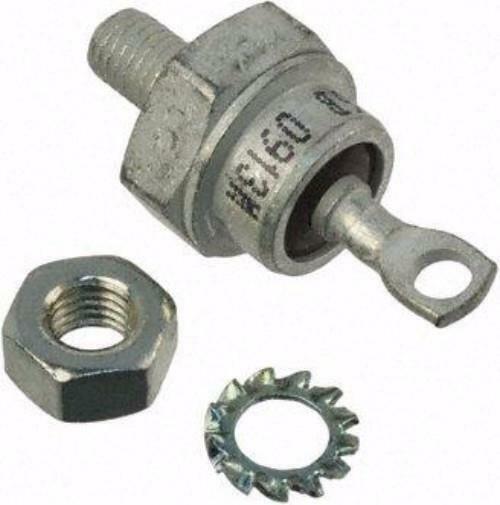

    Vishay VS-85HFLR60S05, Thread Mount Switching Diode, Stud Anode, 600V 85A, 500ns, 2-Pin DO-5


    • BMUK Part # :-468-9815
    • BrandVishay
    • Mfr. Part No.VS-85HFLR60S05
    •  Vishay
    •
    • You will get 1 Diode

    Vishay VS-85HFLR60S05, Thread Mount Switching Diode, Stud Anode, 600V 85A, 500ns, 2-Pin DO-5










    Product Details

    Fast Recovery Rectifiers over 20A, Vishay Semiconductor

    Versatile and high-efficiency Fast recovery power diodes in industry-standard package styles.


    Diodes and Rectifiers, Vishay Semiconductor

    Specifications

    Diode ConfigurationStud Anode
    Maximum Continuous Forward Current85A
    Rectifier TypeSwitching
    Number of Elements per Chip1
    Peak Reverse Repetitive Voltage600V
    Mounting TypeThread Mount
    Package TypeDO-5
    Diode TypeSilicon Junction
    Peak Forward Voltage1.75V
    Pin Count2
    Length20.02mm
    Width17.35mm
    Height22.9mm
    Peak Reverse Recovery Time500ns
    Peak Non-Repetitive Forward Surge Current1.151kA
    Minimum Operating Temperature-40 °C
    Dimensions22.9 x 20.02 x 17.35mm
    Peak Reverse Current100µA
    Maximum Operating Temperature+125 °C



    For a Specification PDF Please CLICK HERE
