1 x Vishay RH050 Series Aluminium Wire Wound Panel Mount Resistor, 3.3Ω ±1% 50W - Vishay

roll over the image to zoom in

£0.00
£7.99
RS 683-6048
Earn0
reward points

In stock: 12

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    ES-3H


    Vishay

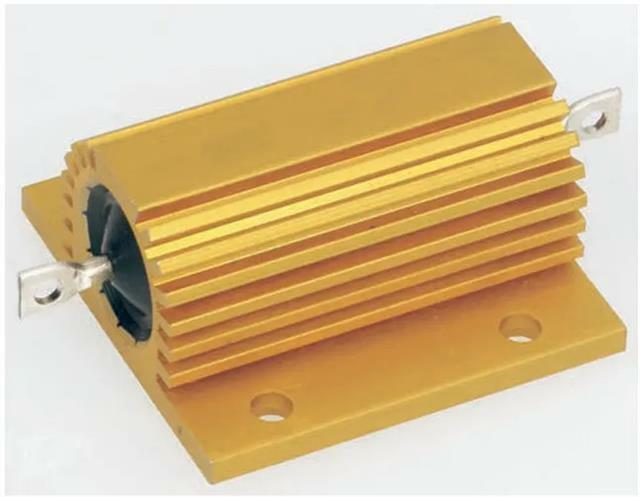

    Vishay RH050 Series Aluminium Housed Axial Wire Wound Panel Mount Resistor, 3.3Ω ±1% 50W

    • BMUK Part # :- 683-6048
    • BrandVishay
    • Mfr Part No.RH0503R300FE02
    •  Vishay
    •
    • You will get 1 Resistor
    Vishay RH050 Series Aluminium Housed Axial Wire Wound Panel Mount Resistor, 3.3Ω ±1% 50W


    Product Details

    50 Watt RH050 Series ±1%

    The Vishay RH050 series wirewound chassis mount resistor has a complete welded and moulded construction for total environmental protection in aluminium housing. These resistors mount directly onto a chassis to utilise heat-sink effect. This range of wirewound resistors offers high stability at conventional power ratings and flat marking surface for easy identification.

    Power rating is based on resistor mounted on a 300x300x1.5mm aluminium panel; unmounted rating is 20W @ 25°C. See manufacturer's data for more information regarding power ratings.



    Aluminium Housed, Wirewound - 5 to 600W

    Specifications

    Technology
    Wire Wound
    Brand
    Vishay
    Resistance
    3.3Ω
    Temperature Coefficient
    ±50ppm/°C
    Package/Case
    Aluminium Housed
    Maximum Operating Temperature
    +250°C
    Minimum Operating Temperature
    -55°C
    Termination Style
    Axial
    Series
    RH050
    Maximum Temperature Coefficient
    +50ppm/°C
    Minimum Temperature Coefficient
    -50ppm/°C
    Power Rating
    50W
    Tolerance
    ±1%
