1 x Vishay 157S502MB9002 Precision Potentiometer 3.17 mm 5kΩ, ±20% 1W ±600ppm/°C - Vishay
roll over the image to zoom in
£0.00
£152.99
RS 173-574
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 18D
Vishay

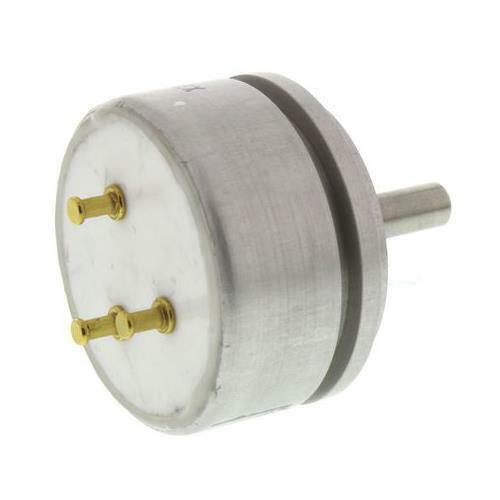

Vishay 157S502MB9002, 157 Series, Linear Precision Potentiometer with a 3.17 mm Dia. Shaft, 5kΩ, ±20%, 1W, ±600ppm/°C, Servo Mount
- BMUK Part # :-173-574
- BrandVishay
- Mfr. Part No.157S502MB9002
-
- You will get 1 Potentiometer
Product Details
22mm Servo Mount 157-2 Series Potentiometers
From Vishay, these 157-2 Series servo mount potentiometers are suitable for use with precision DC motor systems as precision transducers, and feature an anodized aluminum housing that provides accurate location of the shaft directly into drive systems. The 157-2 Series potentiometers have a low shaft torque and a long life, boasting a rotational life of 10 million cycles.
Features and Benefits:
• 1W conductive plastic
• Precision servo mount potentiometers
• Available with a linearity of 0.5% or 2.0%
Note
Potentiometer mounting kit supplied separately stock no. 393-967. This consists of 3 clamps, nuts, screws & mounting instructions. This mounting kit is not required when the potentiometer is used with servo pot mounting kit stock no. 336-214 (refer to the motors section).
Precision - Single Turn & Servo
Specifications
| Maximum Resistance | 5 kΩ | |
| Number of Turns | 1 | |
| Potentiometer Type | Linear | |
| Mounting Type | Servo Mount | |
| Shaft Diameter | 3.17 mm | |
| Power Rating | 1W | |
| Termination Style | Turret | |
| Tolerance | ±20% | |
| Series | 157 | |
| Height | 27.43mm | |
| Dimensions | 22.23 Dia. x 27.43mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Temperature Coefficient | ±600ppm/°C | |
| Diameter | 22.23mm |
