1 x Toko 6DFC Series, Signal Filter 947.5MHz Through Hole, Pin Termination - Toko
roll over the image to zoom in
£0.00
£7.99
RS 752-1037
Unit Quantity:
1
Unit Type:
Unit
Location:
ES-4C
Toko
Toko 6DFC Series, Signal Filter 947.5MHz Through Hole, Pin Termination, 27 x 6.5 x 12mm
- BMUK Part # :-752-1037
- BrandToko
- Mfr Part No.6DFC-947E-10
- You will get 1 Signal Filter

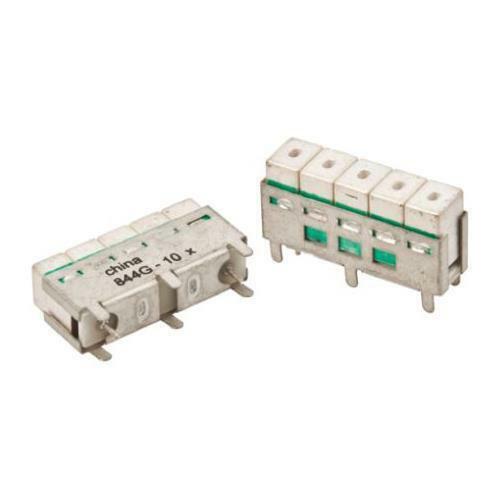

Image representative of range only
Product Details
Leaded Dielectric Filters - 6DFC Series
Ceramic Filters
Specifications
Length
27mm
Depth
6.5mm
Operating Frequency
947.5MHz
Mounting Type
Through Hole
Brand
Toko
Dimensions
27 x 6.5 x 12mm
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-40°C
Termination Style
Pin
Series
6DFC
Height
12mm
