1 x Texas Instruments TPS76618D LDO Voltage Regulator 250mA,1.8V ±3%, 2.7-10Vin - Texas Instruments

roll over the image to zoom in

£0.00
£4.49
RS 661-6456
Earn0
reward points

In stock: 28

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 50 P AND BRA 4ORANGE


    Texas Instruments

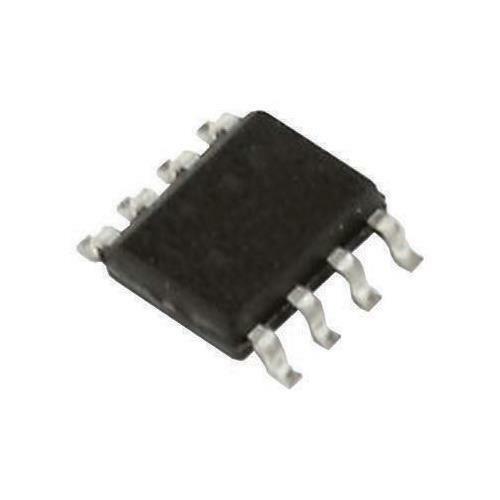

    Texas Instruments TPS76618D, LDO Voltage Regulator, 250mA, 1.8 V, ±3%, 2.7 → 10 Vin, SOIC 8-Pin


    • BMUK Part # :-661-6456
    • BrandTexas Instruments
    • Mfr. Part No.TPS76618D
    •
    • You will get 1 Voltage Regulator







    Product Details

    LDO (Low Dropout) Linear Voltage Regulators, 250mA, Texas Instruments


    LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments

    A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.


    Specifications


    		Output Voltage1.8 V

    		Output TypeFixed

    		Package TypeSOIC

    		Maximum Output Current250mA

    		Mounting TypeSurface Mount

    		Minimum Input Voltage2.7 V

    		Maximum Input Voltage10 V

    		Pin Count8

    		Number of Outputs1

    		Quiescent Current0.035mA

    		Accuracy±3%

    		Minimum Operating Temperature-40 °C

    		Maximum Operating Temperature+125 °C

    		Power Rating0.904W

    		Height1.58mm

    		Width3.91mm

    		Load Regulation0.5 %

    		Dimensions4.9 x 3.91 x 1.58mm

    		Length4.9mm

    		Line Regulation0.01 %/V



    To view the datasheet please Click Here
