1 x Texas Instruments OPA2350UA, Dual Precision Op Amp RRIO 38MHz 3V, 5V, 8-Pin - Texas Instruments
Texas Instruments

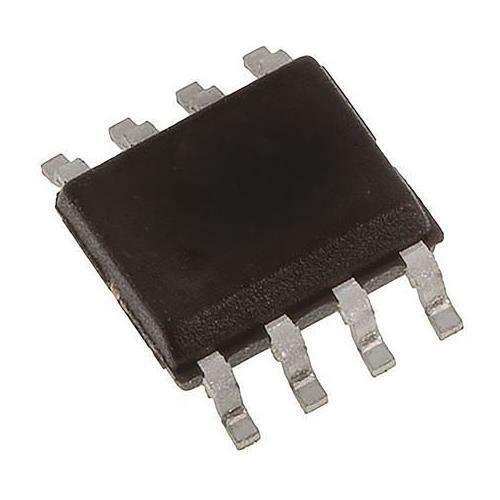

Texas Instruments OPA2350UA, Dual Precision Op Amp, RRIO, 38MHz, 3 V, 5 V, 8-Pin SOIC
High-Speed Operational Amplifiers, OPA Series, Texas Instruments
Amplifier Type | Precision | |
Mounting Type | Surface Mount | |
Package Type | SOIC | |
Power Supply Type | Single | |
Number of Channels per Chip | 2 | |
Pin Count | 8 | |
Typical Single Supply Voltage | 3 V, 5 V | |
Typical Gain Bandwidth Product | 38MHz | |
Typical Slew Rate | 22V/µs | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +85 °C | |
Height | 1.58mm | |
Width | 3.91mm | |
Rail to Rail | Rail to Rail Input/Output | |
Typical Voltage Gain | 122 dB | |
Length | 4.9mm | |
Dimensions | 4.9 x 3.91 x 1.58mm | |
Typical Input Voltage Noise Density | 7nV/√Hz |
TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length
DR-25 Heat shrink Tubing (Shrink Ratio 2:1)
Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.
Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system
Standards
VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.
High Temperature
Sleeve Diameter | 9.5mm | |
Shrunk Diameter | 4.8mm | |
Colour | Black | |
Sleeve Type | Heat Shrink | |
Shrink Ratio | 2:1 | |
Sleeve Length | 10m | |
Material | Elastomer | |
Minimum Operating Temperature | -75°C | |
Maximum Operating Temperature | +150°C | |
Dielectric Strength | 8kV/mm |
Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC
MCP7940M I²C Real-Time Clock/Calendars
The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.
The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.
Features
2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHzOn-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V
Real Time Clock Peripherals - Microchip
Functions | Calendar, NV SRAM | |
Date Format | DW:DM:M:Y | |
Time Format | HH:MM:SS | |
User RAM | 64B | |
Bus Type | Serial-I2C | |
Mounting Type | Surface Mount | |
Package Type | SOIC | |
Pin Count | 8 | |
Dimensions | 4.9 x 3.9 x 1.25mm | |
Length | 4.9mm | |
Width | 3.9mm | |
Height | 1.25mm | |
Maximum Operating Supply Voltage | 5.5 V | |
Minimum Operating Supply Voltage | 1.8 V | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Temperature | -40 °C |
