1 x Texas Instruments CC1000PW, RF Transceiver 300MHz to 1000MHz 2.1-3.6V 28-Pin - Texas Instruments
roll over the image to zoom in
£0.00
£14.99
RS 626-3869
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 50P
Texas Instruments

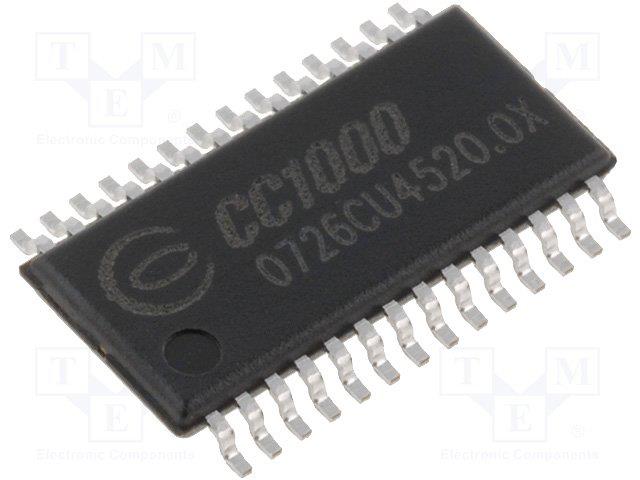

Texas Instruments CC1000PW, RF Transceiver 300MHz to 1000MHz 2.1 → 3.6 V 28-Pin TSSOP
- BMUK Part # :-626-3869
- BrandTexas Instruments
- Mfr. Part No.CC1000PW
You will get 1 RF Transceiver
Product Details
CC1000 series Sub-1GHz RF Transceiver
Ultra-low-power single-chip RF transceiver.
Programmable frequency (300-1000 MHz)
Very low current consumption (Rx: 7.4 mA)
Very few external components required
FSK modulation spectrum shaping
Low supply voltage (2.1 to 3.6 V)
High receiver sensitivity (-110 dBm)
RSSI output
FSK data rate up to 76.8 kBaud
FSK modulation spectrum shaping (optional)
Programmable output power, -20 to +10 dBm
Crystal temperature drift compensation is possible without the use of external TCXO
Suitable for frequency hopping protocols
No external RF switch / IF filter required
Integrated bit synchronizer
Single-port antenna connection
Specifications
| Maximum Operating Band 1 Frequency | 1000MHz | |
| Minimum Operating Band 1 Frequency | 300MHz | |
| Height | 1.15mm | |
| Modulation Technique | FSK | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Minimum Operating Supply Voltage | 2.1 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Dimensions | 9.7 x 4.4 x 1.15mm | |
| Length | 9.7mm | |
| Package Type | TSSOP | |
| Width | 4.4mm |
