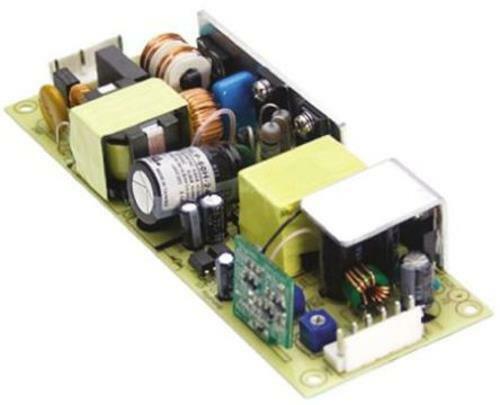

TDK-Lambda 51.6W Embedded Switch Mode Power Supply (SMPS), 4.3A, 12V
Product Details
50W to 300W, Universal Input, Single Output, Medical Approved, HWS-50-300/ME Series
Exceptionally compact, requires typically 60% less space than previous generation products
Medical approvals EN 60601-1, UL 60601-1
Leakage current less than 500μA
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B
Over-voltage and over-current protection
Open frame construction 50 to 150W
300W is enclosed with built-in fan
Note
Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.
Approvals
UL recognised, CSA
Standards
EN 60601-1, UL 60601-1, CSA-C22.2 No. 6011-M90
Approvals
UL recognised, CSA
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Output Voltage | 12 V | |
| Output Current | 4.3A | |
| Power Rating | 51.6W | |
| Input Voltage | 85 → 265 V ac, 120 → 370 V dc | |
| Mounting Type | Open Frame | |
| Number of Outputs | 1 | |
| Package Type | Open Frame | |
| Length | 4.72in | |
| Width | 3.23in | |
| Depth | 1.04in | |
| Ripple And Noise | 150mV | |
| Load Regulation | 96mV | |
| Line Regulation | 48mV | |
| Minimum Temperature | -10°C | |
| Maximum Temperature | +70°C | |
| Weight | 280g | |
| Efficiency | 83% |
