1 x STMicroelectronics HCF4052BEY Multiplexer Switch IC, 3V to 20V, 16-Pin - STMicroelectronics
roll over the image to zoom in
£0.00
£7.49
511-4052
Unit Quantity:
1
Unit Type:
Unit
Location:
TS BRA 11E
STMicroelectronics

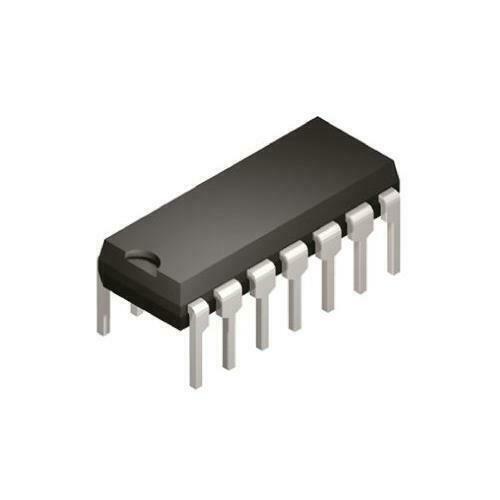

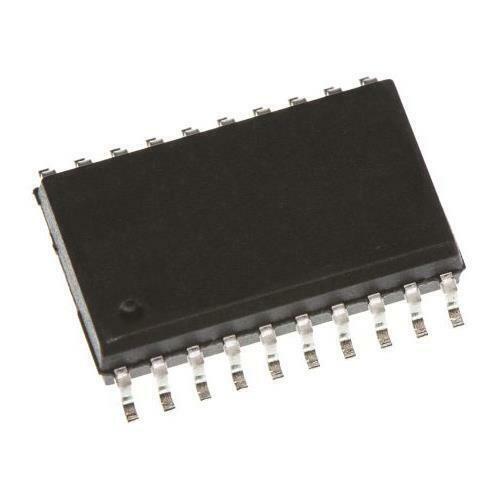

Images are for reference only
See Product Specifications
See Product Specifications
Manufacturer: STMicroelectronics
Product Category: Multiplexer Switch ICs
On Resistance - Max: 1.05 kOhms
On Time - Max: 720 ns
Off Time - Max: 450 ns
Operating Supply Voltage: 3 V to 20 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Bandwidth: 60 MHz
Height: 4.59 mm
Length: 20 mm
Series: HCF4052
Supply Type: Single Supply
Width: 7.1 mm
Brand: STMicroelectronics
Minimum Operating Temperature: - 55 C
Pd - Power Dissipation: 500 mW (1/2 W)
Propagation Delay Time: 60 ns
Supply Voltage - Max: 20 V
Supply Voltage - Min: 3 V
Unit Weight: 1.628 g
Product Category: Multiplexer Switch ICs
On Resistance - Max: 1.05 kOhms
On Time - Max: 720 ns
Off Time - Max: 450 ns
Operating Supply Voltage: 3 V to 20 V
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Bandwidth: 60 MHz
Height: 4.59 mm
Length: 20 mm
Series: HCF4052
Supply Type: Single Supply
Width: 7.1 mm
Brand: STMicroelectronics
Minimum Operating Temperature: - 55 C
Pd - Power Dissipation: 500 mW (1/2 W)
Propagation Delay Time: 60 ns
Supply Voltage - Max: 20 V
Supply Voltage - Min: 3 V
Unit Weight: 1.628 g
