1 x SPDT-NO Illuminated Black Keyboard Switch, 10 mA@ 24 V dc, -25 - +85°C - C&K
roll over the image to zoom in
£0.00
£7.49
RS 211-2335
C&K

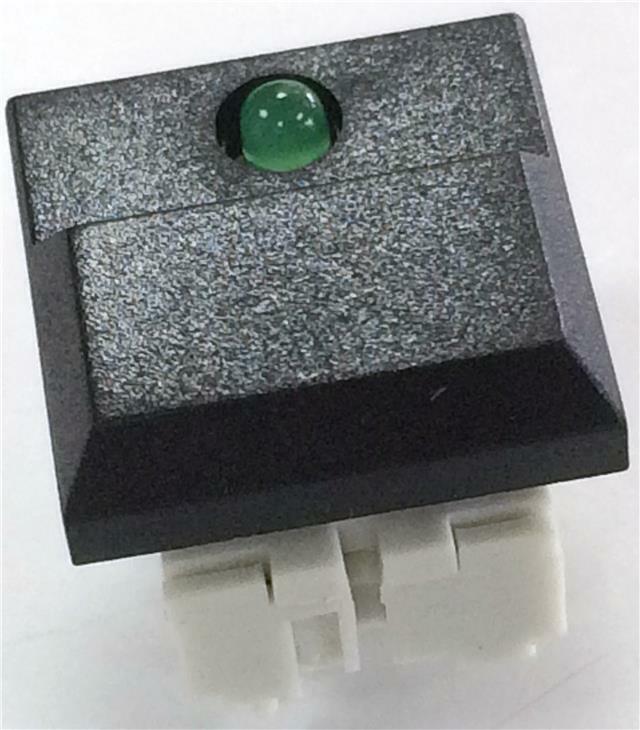

SPDT-NO Illuminated Black Keyboard Switch, 10 mA@ 24 V dc, -25 → +85°C
You will receive 1 Switch
BMUK Part # :-211-2335
BrandC & K
Mfr. Part No.SETL BK GN AU OA 7.62
The 3D viewer requires the Java Runtime Environment (JRE) and for Java to be enabled on your system.
Product Details
SPDT PCB Mounting Modular Keyboard Switches
Au over Nickel SPDT contacts
The plain switches are available with either momentary or latching actions and have grey buttons
The LED versions are available with Red or Green LED’s and have momentary action and black buttons
Switch body designed to prevent ingress of flux or solder
Pin connections on 0.1in pitch matrix
Thermoplastic actuator with short travel and tactile feedback
Soldering temperature: 260 °C for 5 seconds
Contact rating: 10mA @ 24Vdc
Operating temperature: -25 to +85 °C
Dielectric strength: 500MΩ
Width 17.4mm, Depth 12.3mm
Rocker Switch with LED, PCB Mount
Specifications
| Actuator Colour | Black | |
| Contact Configuration | SPDT-NO | |
| Contact Current Rating | 10 mA @ 24 V dc | |
| Contact Material | Gold | |
| Contact Resistance | 100mΩ | |
| Illuminated | Yes | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -25°C | |
| Operating Force | 1.5 N | |
| Switch Operation | Momentary |
For a Specification PDF of the Digitast SE key switch product data please CLICK HERE
For a Specification PDF of the Digitast keyswitch product data please CLICK HERE
