1 x Schneider Electric A9F44425 Acti 9 iC60N Series, MCB 4P, 25A, Curve C - Schneider Electric
roll over the image to zoom in
£0.00
£164.99

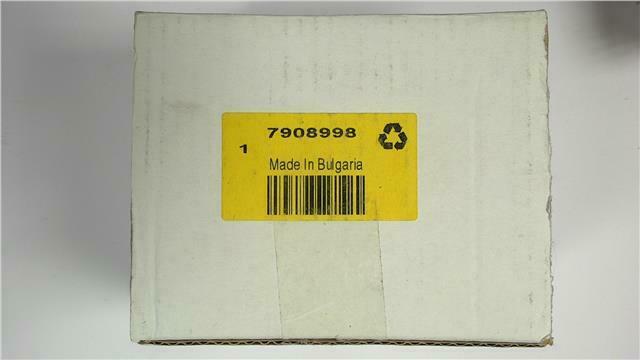

RS 790-8998
Unit Quantity:
1
Unit Type:
Unit
Location:
TS-LB 2H
Schneider Electric
Schneider Electric Acti 9 iC60N MCB 4P, 25 A, Curve C, Genuine Parts from RS Components
- BMUK Part # :-790-8998
- BrandSchneider Electric
- Mfr. Part No.A9F44425
- You will get 1 Circuit Breaker
Product Details
Acti9 iC60N MCBs 4 Pole
iC60N curve B, C, D circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents
VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, wear, or operator experience, even in the most demanding environments; The green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Insulated terminals IP20
Large circuit labelling area
Double clip for dismounting with comb busbar in place
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
Specifications
| Range | Acti 9 | |
| Series | iC60N | |
| Number of Poles | 4 | |
| Current Rating | 25 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 12 → 133 V, 220 → 240 V, 380 → 415 V, 440 V | |
| Rated DC Voltage | 220 → 250V | |
| Breaking Capacity | 6 (AC) (440 V) kA, 6 (DC) (220 → 250 V) kA, 10 (AC) (380 → 415 V) kA, 20 (AC) (220 → 240 V) kA, 36 (AC) (12 → 133 V) kA | |
| Length | 72mm | |
| Width | 85mm | |
| Depth | 78.5mm |
