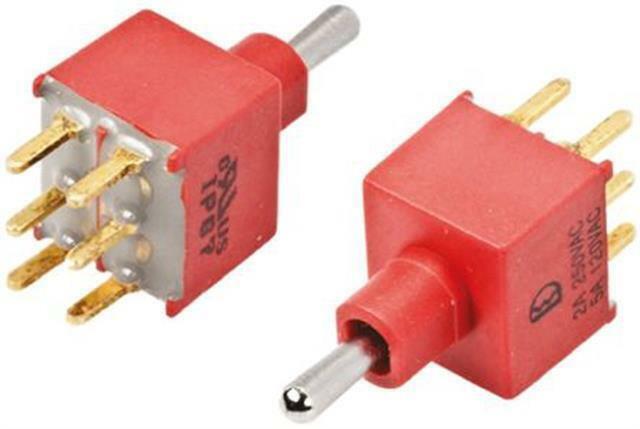

1 x RS Pro Toggle Switch IP67 DPDT (On)-Off-On, 5A @ 250V ac, Through Hole, PCB - RS Pro
roll over the image to zoom in
£0.00
£7.49
RS 734-6956
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 56N
RS Pro
Toggle Switch IP67 DPDT (On)-Off-On, 5 A @ 250 V ac, PCB
- BMUK Part # :-734-6956
- BrandRS Pro
- Mfr. Part No.1AD5T2B4M2QES
- You will get 1 Switch
Product Details
IP67 Sealed Miniature Toggle Switches - RS Series
IP67 rated RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms at sea level.
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
| Contact Configuration | DPDT | |
| Switch Operation | (On)-Off-On | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Mounting Type | PCB | |
| Terminal Type | Through Hole | |
| IP Rating | IP67 | |
| Actuator Length | 7.62mm | |
| Actuator Material | Chromium Plated Brass | |
| Contact Resistance | 10mΩ | |
| Mechanical Life | 30000Cycles | |
| Minimum Operating Temperature | -30°C | |
| Standards Met | RoHS & Lead Free | |
| Contact Material | Gold Over Silver Plated Copper Alloy | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C |
