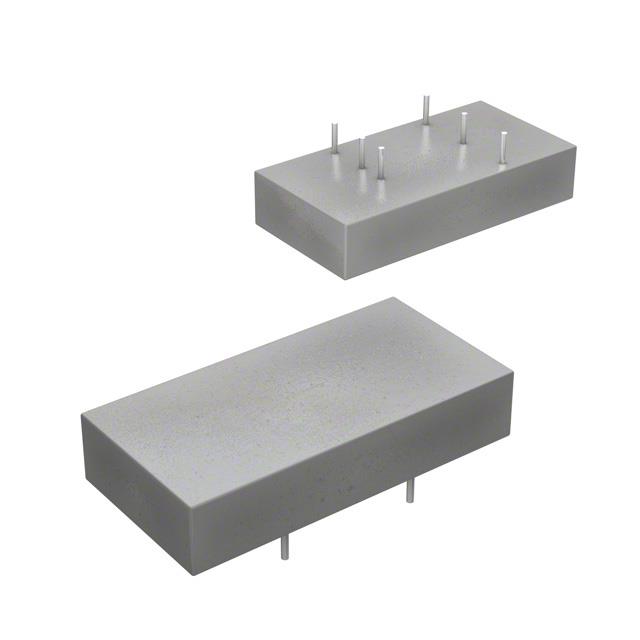

1 x Recom Isolated DC-DC Converter RP15-4812DFW, Vin 18-75 V dc, Vout ±12V dc - Recom
roll over the image to zoom in
£0.00
£73.99
RS 163-574
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 10B
Recom
Recom Isolated DC-DC Converter, Vin 18 → 75 V dc, Vout ±12V dc, I/O isolation 1600V dc
- BMUK Part # :-163-574
- BrandRecom
- Mfr. Part No.RP15-4812DFW
- You will get 1 DC-DC Converter
Product Details
Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-FW Series
Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input/output isolation
Pi input filter, requires the external filter to meet EN 55022 Class A
Under voltage, over voltage (single), overload and short circuit protection
Shielded metal case with insulated baseplate
Industry-standard pin-out
| Connection Data | ||
| Pin | Single Output | Dual Output |
| 1 | +Vin | +Vin |
| 2 | -Vin | -Vin |
| 3 | +V out | +V out |
| 4 | No pin | Common |
| 5 | -V out | -V out |
| 6 | No pin | No pin |
Note
Operating temperature with derating -40°C to +105°C.
Approvals
UL recognised
Standards
UL 1950
Recom - 7.5W to 15W
Specifications
| Output Voltage | ±12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Input Voltage Nominal | 48 V dc | |
| Isolation Voltage | 1600V dc | |
| Output Current | ±0.625A | |
| Mounting Type | Through Hole | |
| Number of Outputs | 2 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +75°C | |
| Depth | 10.2mm | |
| Series | RP15 FW | |
| Length | 25.4mm |
