1 x Recom 5W Isolated DC-DC Converter REC5-2405DRWZ/H1/A, Vin 9-36V dc - Recom
roll over the image to zoom in
£0.00
£34.99
RS 543-8028
Unit Quantity:
1
Unit Type:
Unit
Location:
BRA 12P
Recom
Recom Through Hole 5W Isolated DC-DC Converter, Vin 9 → 36 V dc, Vout ±5V dc
- BMUK Part # :-543-8028
- BrandRecom
- Mfr. Part No.REC5-2405DRWZ/H1/A
- You will get 1 DC-DC Converter

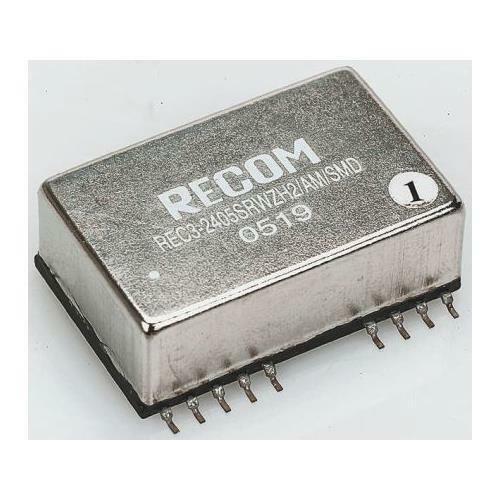

Image representative of range
Product Details
Recom 5W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC5 Series
Short circuit protected
Regulated output
DIP24 package
UL94V-0 package material
High efficiency (81% typ)
2% voltage setting accuracy
1kVdc (H1 suffix) or 2kVdc (H2 suffix) Isolation
Pi-network input filter
4:1 wide input range
Single and dual output options
Note
Operating temperature is without derating.
Standards
EN60950-1, UL60950-1, EN60601-1
Recom - DIP 1W to 10W
Specifications
| Output Voltage | ±5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Input Voltage Nominal | 24 V dc | |
| Power Rating | 5W | |
| Output Current | ±0.5A | |
| Mounting Type | Through Hole | |
| Number of Outputs | 2 | |
| Package | DIP | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +75°C | |
| Length | 32mm | |
| Depth | 10.2mm |
To view the datasheet please Click Here
