1 x Recom 5W, 1 Output, Embedded Switch Mode Power Supply RAC05-05SB, 5V dc, 1A - Recom

roll over the image to zoom in

£0.00
£50.99
RS 193-294
Earn0
reward points

In stock: 3

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS 26D


    Recom

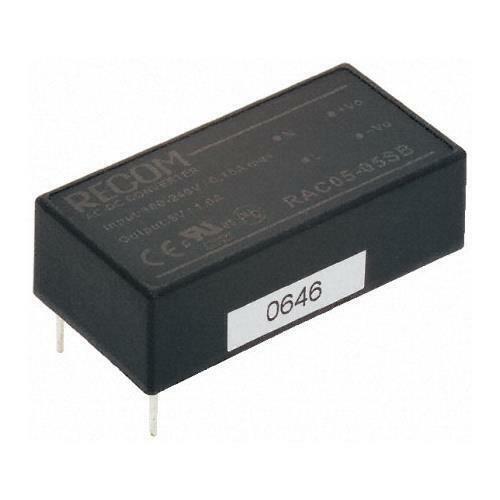

    Recom 5W, 1 Output, Embedded Switch Mode Power Supply (SMPS), 5V dc, 1A


    • BMUK Part # :-193-294
    • BrandRecom
    • Mfr. Part No.RAC05-05SB
    •
    •
    • You will get 1 Switch Mode Power Supply







    Product Details

    Recom 5W & 10W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC-B Series

    Ultra compact, fully encapsulated power supplies
    Plastic case UL94-V0 rated
    Solder pins for PCB mounting
    Universal input 90-264Vac or 120-370Vdc
    EMI compliance to EN 55022 Class B
    Short circuit, overload and overvoltage protection

    Connection Data
    PinSingle Output
    1AC in (N)
    2AC in (L)
    3+V out
    4- V out

    Note

    Derate output power above 50°C.

    Approvals

    UL recognised

    Standards

    UL 60950-1




    Switch Mode - Recom, RAC Series

    Specifications


    		Output Voltage5 V dc

    		Output Current1A

    		Power Rating5W

    		Input Voltage90 → 264V ac

    		Number of Outputs1

    		Package TypeEncapsulated

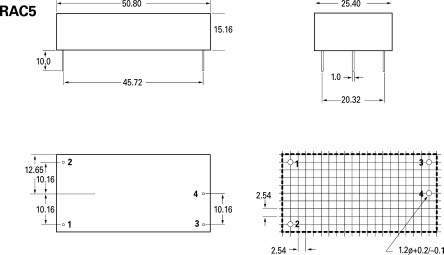

    		Length50.8mm

    		Width25.4mm

    		Depth15.16mm

    		Ripple And Noise±0.2 %, ±0.5 %

    		Load Regulation±0.5%

    		Line Regulation±0.3%

    		Minimum Temperature-25°C

    		Maximum Temperature+70°C

    		MTBF360000h

    		Weight30g

    		Efficiency71%



    For a Specification PDF Please   CLICK HERE
