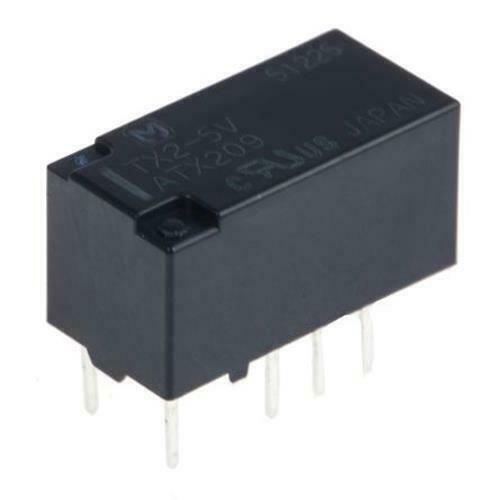

1 x Panasonic TX2-5V DPDT Relay PCB Mount, 5V dc Coil, 2A Contacts 220V DC - Panasonic

roll over the image to zoom in

£0.00
£5.99
RS 815-4880
Earn0
reward points

In stock: 19

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Number of Pins:
    8-Pin
    Location:
    ES-11D


    Panasonic

    Panasonic DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A

    • BMUK Stock No.815-4880
    • BrandPanasonic
    • Mfr Part No.TX2-5V
    •
    • You will get ONE relay
    •
    •  Panasonic
    Panasonic DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A
    Product Details

    TX2 Series

    These PCB surface mount relays have a high contact capacity of 2A and a high breakdown voltage

    High surge and breakdown voltage
    High vibration and shock resistance
    Sealed construction allows automatic washing

    Ideal for telecommunication applications, measurement, security, medical equipment etc

    Approvals

    UL, CSA

    Specifications
    Coil Voltage
    5V dc
    Minimum Operating Temperature
    -40°C
    Maximum Operating Temperature
    +85°C
    Isolation Coil To Contact
    2kV rms
    Length
    15mm
    Maximum Switching Power DC
    60 W
    Brand
    Panasonic
    Operating Temperature Range
    -40 → +85°C
    Mounting Type
    PCB Mount
    Dimensions
    15 x 7.4 x 8.2mm
    Coil Power
    140mW
    Coil Resistance
    178 Ω
    Application
    Domestic Appliances, General Purpose, Medical Equipment, Safety
    Terminal Type
    PCB Pin
    Contact Configuration
    DPDT
    Height
    8.2mm
    Contact Material
    Gold Plated
    Depth
    7.4mm
    Life
    1 x 10^5 (Electrical) Operations, 10^8 (Mechanical) Operations
    Maximum Switching Voltage DC
    220V
