1 x Panasonic Aluminium Electrolytic Capacitor ECET2EA182FA 1800uF 250V dc - Panasonic

roll over the image to zoom in

£0.00
£5.99
RS 358-1934
Earn0
reward points

In stock: 17

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    ES-2L


    Panasonic



    Panasonic Aluminium Electrolytic Capacitor 1800μF 250V dc 40mm Through Hole HA SNAP IN Series +105°C


    • BMUK Part # :- 358-1934
    • BrandPanasonic
    • Mfr. Part No.ECET2EA182FA
    •  Panasonic
    •
    •
    • You will get 1 Capacitor



    Panasonic Aluminium Electrolytic Capacitor 1800μF 250V dc 40mm Through Hole HA SNAP IN Series +105°C

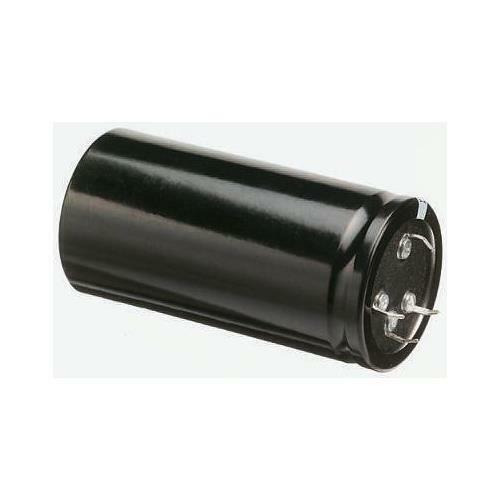

    Image representative of range



    Product Details

    T-HA Series

    4 terminals provide stability and keyed polarity
    2000 hour endurance at 105°C
    Compact size

    Note

    Terminals A & C must be isolated from the wiring circuit.

    //media.rs-online.com/t_line/L358187-01.gif



    Specifications

    Capacitance1800 µF
    TechnologyElectrolytic
    Voltage250 V dc
    Mounting TypeThrough Hole
    Dimensions40 (Dia.) x 50mm
    Height50mm
    Diameter40mm
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+105°C
    ConstructionSnap-In
    SeriesHA SNAP IN
    Terminal TypeThrough Hole
    Tolerance Plus+20%
    Equivalent Series Resistance120mΩ
    Tolerance±20%
    Tolerance Minus-20%
    Ripple Current3.15A
    Lead Diameter0.8mm
    Lifetime3000h
