1 x Nuvotem Talema 2 Output Toroidal Transformer, 1000VA, 2 x 55V ac Audio Amp - Nuvotem Talema
roll over the image to zoom in
£0.00
£199.99
RS 223-8443
Unit Quantity:
1
Unit Type:
Unit
Location:
Eval Room
Nuvotem Talema
2 Output Toroidal Transformer, 1000VA, 2 x 55V ac
- BMUK Part # :-223-8443
- BrandNuvotem Talema
- Mfr. Part No.1000P1-2-055
- You will get 1 Transformer
Product Details
Open Style with Leads, 15VA to 1000VA

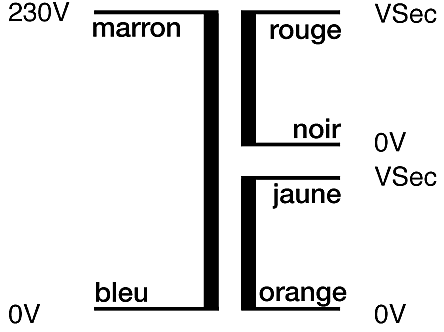

High quality open style toroidal transformers with a single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415
| Leads | PVC insulated 150mm long, 10mm stripped and tinned |
| Secondary Voltage Tolerance | <1% at nominal input |
| Insulation | UL recognised Class A 105C |
| Operating Temperature | +40C Maximum Ambient |
| Neoprene Pads | 5kV isolation |
| EN61558 Approved to insulation Class E(120°C) |
Standards
UL 506; EN 61558
Supplied with
Full mounting kit
Approvals
UL 506; EN 61558
Standards
EN61558; EN60950; EN60065; BS415
| Technical specifications | ||||||
| VA | regulation | rise in | dimensions (mm) | mounting | weight | |
| nominal | (%) typ. | temp. (°C) | Ø | h* | bolt | (kg) |
| 15 | 16 | 26 | 60 | 31 | M6 x 40 | 0.3 |
| 30 | 18 | 40 | 70 | 32 | M6 x 40 | 0.45 |
| 50 | 14 | 42 | 80 | 33 | M6 x 40 | 0.65 |
| 80 | 14 | 53 | 93 | 38 | M6 x 50 BA | 0.9 |
| 120 | 10 | 52 | 93 | 46 | M6 x 60 | 1.2 |
| 160 | 9 | 55 | 105 | 42 | M6 x 50 | 1.5 |
| 225 | 8 | 60 | 112 | 47 | M6 x 60 | 1.9 |
| 300 | 8 | 60 | 115 | 58 | M6 x 70 | 2.3 |
| 500 | 6 | 68 | 136 | 60 | M8 x 70 | 3.5 |
| 625 | 5 | 67 | 136 | 68 | M8 x 80 | 4.3 |
| 800 | 5 | 69 | 162 | 60 | M8 x 70 | 5.1 |
| 1000 | 5 | 72 | 162 | 70 | M8 x 80 | 6.5 |
| * Leave 4 mm more for clearance, and 5 mm more where conductors come out | ||||||
Warning
- Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Specifications
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 2 x 55V ac | |
| Power Rating | 1000VA | |
| Number of Outputs | 2 | |
| Secondary Current | 9.09A | |
| Height | 70mm | |
| Weight | 6.5kg | |
| Diameter | 162mm | |
| Dimensions | 162 (Dia.) x 70mm | |
| Maximum Operating Frequency | 450Hz | |
| Termination Type | Copper Conductor Termination Wire | |
| Isolation Voltage | 4.5kV ac | |
| Maximum Temperature | +120°C | |
| Minimum Temperature | 0°C |
For a Specification PDF Please CLICK HERE
