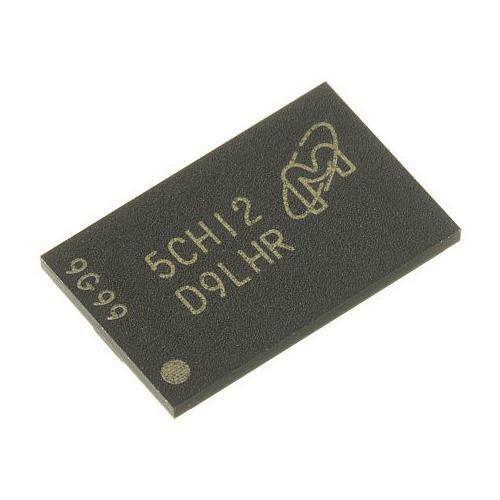

1 x Micron MT47H64M16HR-3:H, DDR2 SDRAM Memory 1Gbit, 667MHz, 1.7V-1.9V, 84-Pin - Micron

roll over the image to zoom in

£0.00
£7.99
RS 708-1116
Earn0
reward points

In stock: 45

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit


    Micron

    Micron MT47H64M16HR-3:H, DDR2 SDRAM Memory 1Gbit, 667MHz, 0.45ns, 1.7 V - 1.9 V, 0 → +85 °C, 84-Pin FBGA


    • BMUK Part Number.708-1116
    • BrandMicron
    • Mfr Part No.MT47H64M16HR-3:H
    •  Micron
    •
    • You will get 1 Memory

    Micron MT47H64M16HR-3:H, DDR2 SDRAM Memory 1Gbit, 667MHz, 0.45ns, 1.7 V - 1.9 V, 0 → +85 °C, 84-Pin FBGA








    Product Details

    Dynamic RAM, Micron Technology








    Dynamic RAM

    Specifications


    Maximum Operating Temperature
    +85 °C
    Length
    12.5mm
    Minimum Operating Supply Voltage
    1.7 V
    Brand
    Micron
    Memory Size
    1Gbit
    Package Type
    FBGA
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    0 °C
    Data Bus Width
    16bit
    Maximum Random Access Time
    0.45ns
    Width
    8mm
    Data Rate
    667MHz
    Organisation
    64M x 16 bit
    Height
    0.8mm
    Address Bus Width
    16bit
    Maximum Operating Supply Voltage
    1.9 V
    Pin Count
    84
    Dimensions
    12.5 x 8 x 0.8mm
    Number of Words
    8M
    Number of Bits per Word
    16bit
