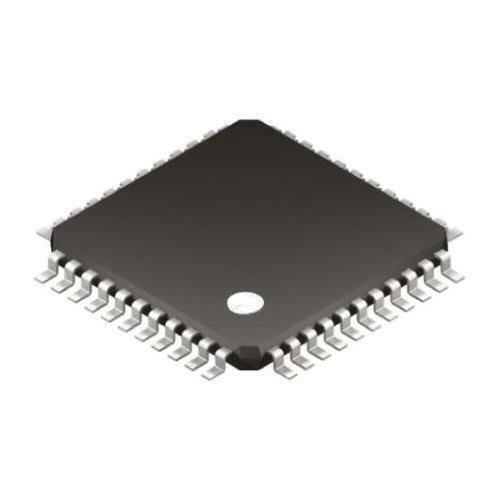

1 x Microchip PIC16LF877-04I/PT 8bit PIC Microcontroller 4MHz Flash 44-Pin TQFP - Microchip

roll over the image to zoom in

£0.00
£12.99
RS 165-4627
Earn0
reward points

In stock: 100

Sorry! We're out of stock

Add To Your Wishlist
    Unit Type:
    Unit
    Location:
    TS SHELF


    Microchip

    Microchip PIC16LF877-04I/PT, 8bit PIC Microcontroller, 4MHz, 256 x 8 words, 8K x 14 words Flash, 44-Pin TQFP


    • BMUK Stock No.165-4627
    • Brand
    • Mfr Part No.PIC16LF877-04I/PT
    •
    • You will receive 1 PIC Microcontroller








    Product Details

    PIC16F873/874/876/877 8-Bit Flash Microcontrollers

    The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

    The PIC16F873/874/876/877 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.




    PIC16 Microcontrollers

    Specifications

    Maximum Operating Temperature
    +85 °C
    PWM Resolution
    10bit
    ADC Resolution
    10bit
    Pulse Width Modulation
    2(10 bit) (CCP)
    Number of ADC Units
    1
    Number of UART Channels
    0
    Instruction Set Architecture
    RISC
    ADCs
    8 x 10 bit
    Package Type
    TQFP
    Mounting Type
    Surface Mount
    Data Bus Width
    8bit
    Number of PCI Channels
    0
    Width
    10.1mm
    Maximum Number of Ethernet Channels
    0
    Number of PWM Units
    2
    Height
    1.05mm
    Number of USART Channels
    1
    Dimensions
    10.1 x 10.1 x 1.05mm
    Number of Ethernet Channels
    0
    Timer Resolution
    8 bit, 16 bit
    Number of LIN Channels
    0
    Program Memory Type
    Flash
    Program Memory Size
    256 x 8 words, 8K x 14 words
    Length
    10.1mm
    Device Core
    PIC
    Brand
    Microchip
    ADC Channels
    8
    Minimum Operating Temperature
    -40 °C
    Family Name
    PIC16F
    USB Channels
    0
    RAM Size
    368 B
    Timers
    1 x 16 bit, 2 x 8 bit
    Number of CAN Channels
    0
    Pin Count
    44
    Number of Timers
    3
    Number of I2C Channels
    1
    Number of SPI Channels
    1
    Maximum Frequency
    4MHz
    Typical Operating Supply Voltage
    2 → 5.5 V
