1 x Microchip PIC16F877-20/PQ 8bit PIC Microcontroller 20MHz 256 x 8 words SMD - Microchip

roll over the image to zoom in

£0.00
£7.99
RS 467-1656
Earn0
reward points

In stock: 34

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    Basic Micro Box


    Microchip

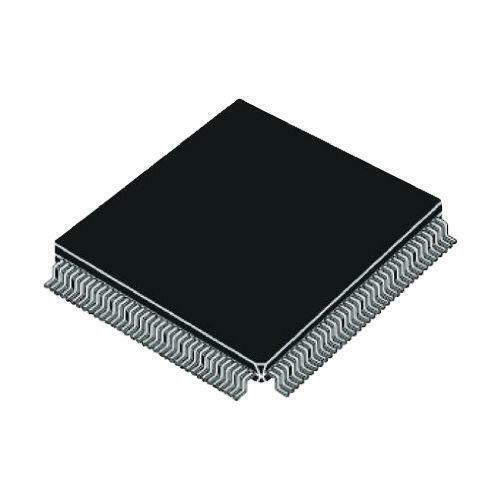

    Microchip PIC16F877-20/PQ, 8bit PIC Microcontroller, 20MHz, 256 x 8 words, 8K x 14 words Flash, 44-Pin MQFP


    • BMUK Part # :-467-1656
    • BrandMicrochip
    • Mfr. Part No.PIC16F877-20/PQ
    •
    •
    • You will get 1 Microcontroller






    Image representative of range



    Product Details

    PIC16F873/874/876/877 8-Bit Flash Microcontrollers

    The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

    The PIC16F873/874/876/877 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes.



    Microcontroller Features

    20 MHz Max. CPU Speed
    35 Instructions
    8 Level Hardware Stack
    22 I/O Pins – PIC16F873/876
    33 I/O Pins – PIC16F874/877
    Power-On Reset (POR)
    Brown-Out Reset (BOR)
    Power-Up Timer (PWRT)
    Oscillator Start-Up Timer (OST)
    Watchdog Timer (WDT)
    In-Circuit Serial Programming (ICSP)
    In-Circuit Debug (ICD)

    Peripherals

    10-bit Analogue-to-Digital Converter (ADC) - PIC16F873/876 5 Channels, PIC16F874/877 8 Channels
    Two Capture, Compare, PWM (CCP) Modules
    Two 8-bit Timers
    One 16-bit Timer
    Synchronous Serial Port (SSP) with SPI and I2C
    Universal Synchronous Asynchronous Receiver Transmitter (USART)
    Parallel Slave Port (PSP) – PIC16F874/877 Models Only




    PIC16 Microcontrollers

    Specifications


    		Family NamePIC16F

    		Package TypeMQFP

    		Mounting TypeSurface Mount

    		Pin Count44

    		Device CorePIC

    		Data Bus Width8bit

    		Program Memory Size8K x 14 words, 256 x 8 words

    		Maximum Frequency20MHz

    		RAM Size368 B

    		Number of PWM Units2

    		ADC Channels8

    		Number of SPI Channels1

    		Typical Operating Supply Voltage4 → 5.5 V

    		Minimum Operating Temperature0 °C

    		Instruction Set ArchitectureRISC

    		PWM Resolution10bit

    		Program Memory TypeFlash

    		Width10.1mm

    		ADCs8 x 10 bit

    		Number of USART Channels1

    		Number of ADC Units1

    		Height2.1mm

    		ADC Resolution10bit

    		Number of I2C Channels1

    		Board Level ComponentsY

    		Timer Resolution8 bit, 16 bit

    		Timers1 x 16 bit, 2 x 8 bit

    		Dimensions10.1 x 10.1 x 2.1mm

    		Length10.1mm

    		Pulse Width Modulation2(10 bit) (CCP)

    		Maximum Operating Temperature+70 °C

    		Number of Timers3


    To view the datasheet please  Click Here
