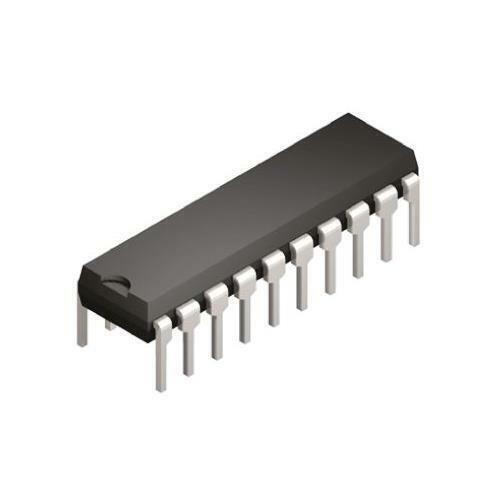

Microchip PIC16F690-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 4096 x 14 words Flash, 20-Pin PDIP
- BMUK Part # :-623-0421
- BrandMicrochip
- Mfr. Part No.PIC16F690-I/P
-
Product Details
PIC16F631/677/685/687/689/690 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F631/677/685/687/689/690 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory, up to 256 bytes RAM and Data EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable frequency range 8 MHz to 32 kHz
18 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
Peripherals
12 Channel 10-bit Analogue to Digital Converter (ADC) – PIC16F677/685/687/689/690 Models OnlyTwo Comparators
8-bit Timer – PIC16F631/677/687/689 Models x 1, PIC16F685/690 Models x 2
One 16-bit Timer
Enhanced Capture, Compare, PWM Module – PIC16F685/690 Models Only
Synchronous Serial Port (SSP) – PIC16F677/687/689/690 Models Only
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) – PIC16F687/689/690 Models Only
PIC16 Microcontrollers
Specifications
| Family Name | PIC16F | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 20 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 256 B, 4096 x 14 words | |
| Maximum Frequency | 20MHz | |
| RAM Size | 256 B | |
| ADC Channels | 12 | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 2 to 5.5 V | |
| Width | 0.28in | |
| ADCs | 12 x 10 bit | |
| Number of USART Channels | 1 | |
| Number of ADC Units | 1 | |
| Number of Timers | 3 | |
| Program Memory Type | Flash | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Number of I2C Channels | 1 | |
| Height | 0.195in | |
| Maximum Operating Temperature | +85 °C | |
| Length | 26.92mm | |
| Dimensions | 1.06 x 0.28 x 0.195in | |
| Timers | 1 x 16 bit, 2 x 8 bit | |
| Timer Resolution | 8 bit, 16 bit | |
| ADC Resolution | 10bit |
