1 x Maxim MAX232CPE+, Line Transceiver, 5V, 16-Pin PDIP - Maxim

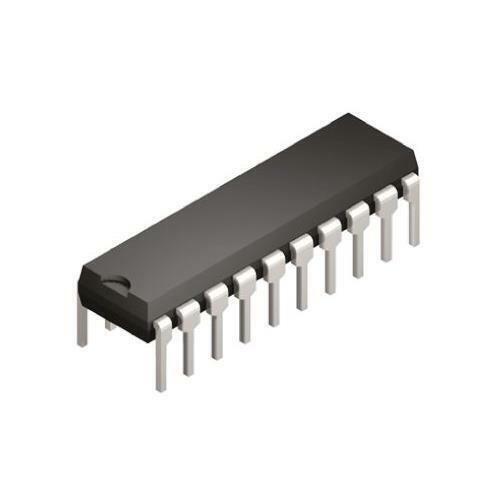

roll over the image to zoom in
£0.00
£7.49
RS 540-5359
Unit Quantity:
1
Unit Type:
Unit
Location:
ES-14D ALSO BRA 11D
Maxim
Maxim MAX232CPE+, Line Transceiver, EIA/TIA-232-E/ RS-232/ V.24/ V.28 2-TX 2-RX, 5 V, 16-Pin PDIP
- BMUK Part # :-540-5359
- BrandMaxim
- Mfr Part No.MAX232CPE+
-
- You will get 1 IC
Product Details
RS-232 Dual Transmitters/Receivers, Maxim Integrated
The <B>Maxim</B> family of dual RS232 line drivers and receivers are intended for all EIA/TIA-232E, V.24 and V.28 communications interface. <B>Maxim</B>’s RS232 dual transmitter/receiver will allow applications such as interface translation, modem, laptop as well as RS232 battery-powered systems due to their low-power shutdown mode. The multichannel transceiver MAX233, MAX235 have no external components therefore are ideal where space is crucial.<BR/>
RS-232 Line Drivers and Receivers
Specifications
Maximum Operating Temperature
+70 °C
Length
19.43mm
Typical Single Supply Voltage
5 V
Brand
Maxim
Power Supply Type
Single
Package Type
PDIP
Mounting Type
Through Hole
Minimum Operating Temperature
0 °C
Width
7.87mm
Data Rate
120kbps
Transmitter Signal Type
Single Ended
Height
4.45mm
Pin Count
16
Dimensions
19.43 x 7.87 x 4.45mm
Interface Standards
EIA/TIA-232-E/ RS-232/ V.24/ V.28
Number of Transmitters
2
Number of Receivers per Line
1
Number of Receivers
2
Receiver Signal Type
Single Ended
Number of Drivers per Line
1
