1 x Kingbright BA56-12SEKWA 3 Digit 7-Segment LED Display, CA Orange 120mcd - Kingbright
roll over the image to zoom in
£0.00
£7.99
RS 863-4960
Unit Quantity:
1
Unit Type:
Unit
LED Colour:
Orange
Light Intensity:
120 mcd
Location:
BRA5G
Kingbright

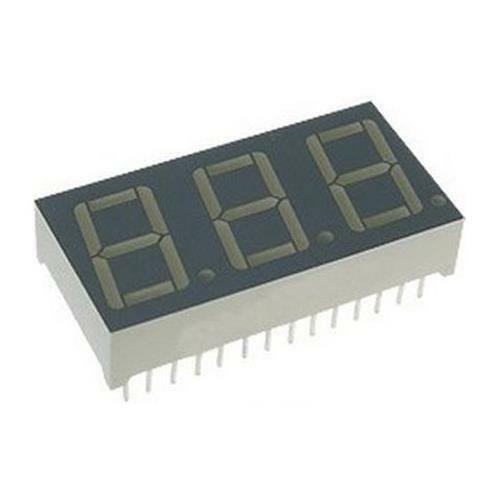

Kingbright BA56-12SEKWA 3 Digit 7-Segment LED Display, CA Orange 120 mcd RH DP 14.2mm
- BMUK Part # :-863-4960
- BrandKingbright
- Mfr. Part No.BA56-12SEKWA
-
- You will get ONE Led Display
Product Details
Kingbright Triple Digit 7-segment Display
A range of triple-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
7-Segment LED Displays
Specifications
| Display Type | 7-Segment | |
| Number of Characters | 3 | |
| LED Colours | Orange | |
| Number of Segments | 7 | |
| Character Width | 8mm | |
| Character Height | 14.2mm | |
| Character Dimensions | 14.2 x 8mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Height | 19mm | |
| External Width | 37.6mm | |
| Luminous Intensity | 120 mcd | |
| Minimum Operating Temperature | -40°C | |
| External Depth | 8.1mm | |
| Operating Temperature Range | -40 → +85°C | |
| External Dimensions | 37.6 x 19 x 8.1mm | |
| Decimal Orientation | Right Side | |
| Colour of Face | Grey | |
| Maximum Operating Temperature | +85°C |
