1 x ITT Cannon ZDCA-62S-BB1 62 Way Through Hole Mount PCB D-sub Connector - ITT Cannon
roll over the image to zoom in
£0.00
£14.99
RS 617-0004
Unit Quantity:
1
Unit Type:
Unit
Location:
TS 16C
ITT Cannon

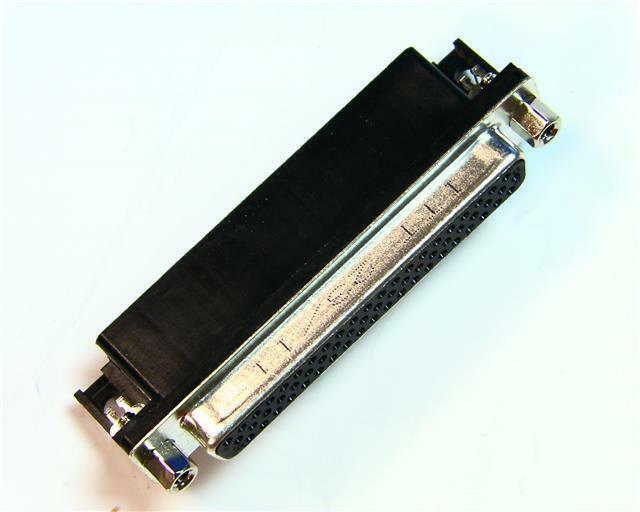

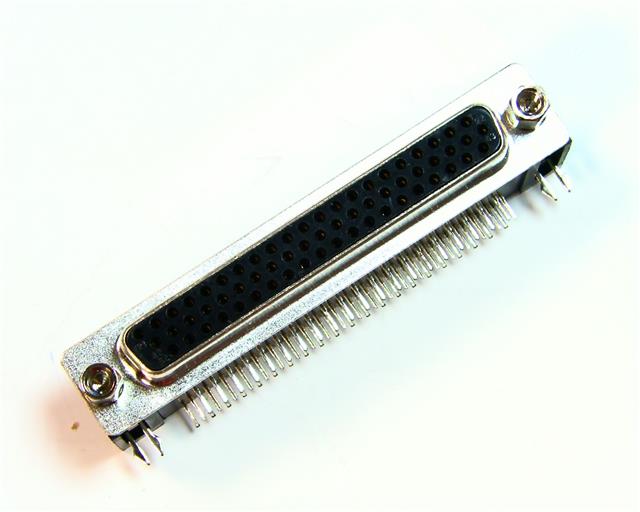

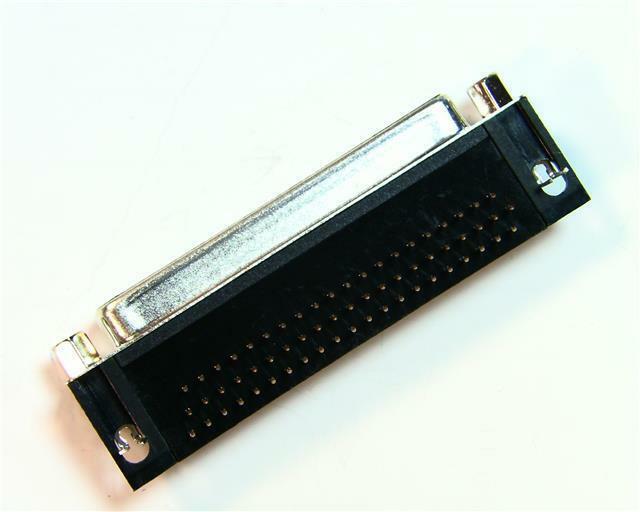

ITT Cannon ZDCA-62S-BB1, ZD Series, 62 Way Right Angle Through Hole Mount PCB D-sub Connector Socket
- BMUK Part # :-617-0004
- BrandITT Cannon
- Mfr. Part No.ZDCA-62S-BB1
-
- You will get 1 Connector Socket
Product Details
Connectors for soldering onto ZD PCBs** High-density D-sub
The high-density D-sub connectors are used for IT and industrial applications which require a high number of contacts in traditional-size D-subs or in a reduced size with a similar number of contacts.
They accept all of the same accessories as traditional D-subs.
Lock using knurled 4-40 UNC nut.
Stamped and formed contacts.
The angled female connectors feature a bracket with harpoons.
| Enclosure: | tinned steel |
| Insulator: | black polyester UL 94-V0 |
| Contacts | - male: brass - female: phosphor bronze |
| Contact finish: | selective gold plating (gold on the front and tin on the rear) |
| Insulation resistance: | > 5000 MΩ |
| Current rating: | 2 A (@ 65°C) |
| Operating voltage: | 350 Vac |
| Test voltage: | >500 V eff. |
| Contact resistance: | 20 mΩ max. |
| Operating temperature: | –55 °C → +105 °C |
General High Density 'D' Connectors
Specifications
| Number of Contacts | 62 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Current Rating | 5A | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 350 Vac | |
| Series | ZD | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55°C | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | +105°C |
