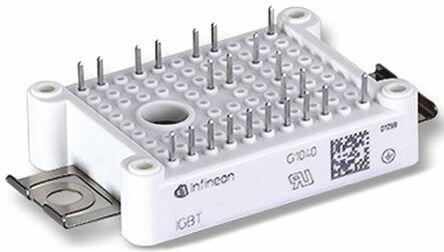

1 x Infineon FS20R06W1E3B11BOMA1 EASY1B N-Channel Common Collector IGBT 35A 600V - Infineon
roll over the image to zoom in
£0.00
£54.95
RS 838-6936
Unit Quantity:
1
Unit Type:
Unit
Location:
ES 11K+11L
Infineon
Infineon FS20R06W1E3B11BOMA1, EASY1B , N-Channel Common Collector IGBT Module, 35 A max, 600 V, PCB Mount
- BMUK Stock No.838-6936
Brand - Mfr Part No.FS20R06W1E3B11BOMA1
- You will get ONE IGBT module
Product Details
IGBT Modules, Infineon
The Infineon range of IGBT Modules offer low switching loss for switching up to 60 Khz frequencies.
The IGBTs span over a range of power modules like the ECONOPACK packages with collector emitter voltage at 1200V, PrimePACK IGBT half-bridge chopper modules with NTC up to 1600/1700V. The PrimePACK IGBT’s can be found in Industrial, commercial, construction and agricultural vehicles. The N-Channel TRENCHSTOP TM and Fieldstop IGBT Modules are suitable for hard switching and soft switching applications such as Inverters, UPS and Industrial drives.
IGBT Discretes & Modules, Infineon
Specifications
Maximum Operating Temperature
+150 °C
Length
48mm
Transistor Configuration
3 Phase
Brand
Infineon
Maximum Collector Emitter Voltage
600 V
Maximum Continuous Collector Current
35 A
Package Type
EASY1B
Maximum Power Dissipation
135 W
Mounting Type
PCB Mount
Minimum Operating Temperature
-40 °C
Width
33.8mm
Height
12mm
Pin Count
22
Dimensions
48 x 33.8 x 12mm
Switching Speed
1MHz
Configuration
Common Collector
Maximum Gate Emitter Voltage
±20V
Channel Type
N
